TOUGHTEK System,s340e,120v,w/remote

Name: TOUGHTEK System,s340e,120v,w/remote
Brand: Graco
SKU: 25A302
Price: 11304.00 USD
Availability: InStock

Type: Air-Assisted Airless Sprayers

SKU 25A302

UPC 755652329947

Brand Graco

$11,304.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

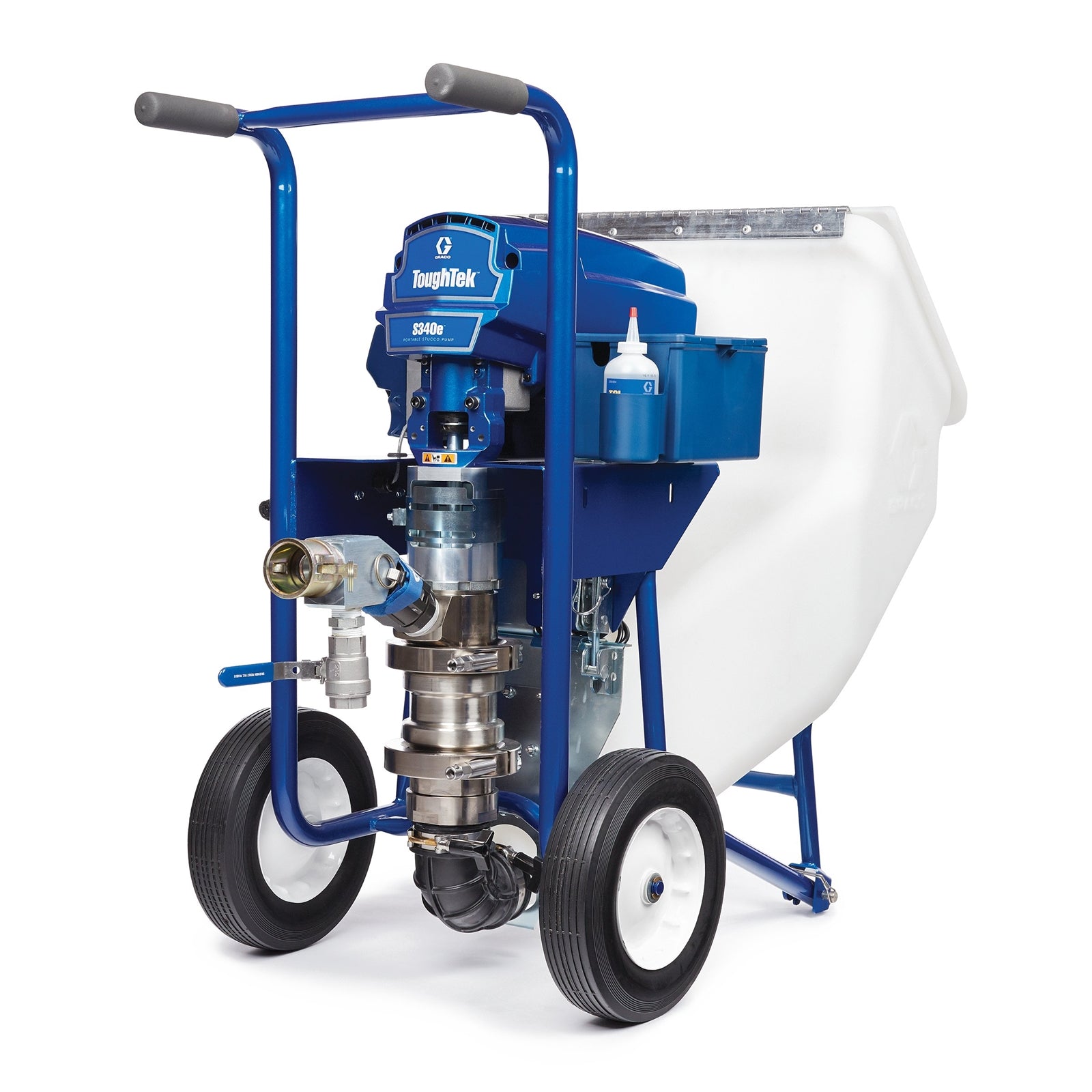

ToughTek S340e Bare Piston Pump System, Remote On/Off Switch, 120V, 15A

TOUGHTEK SYSTEM,S340E,120V,W/REMOTE

Product Specifications

UPC Product: 755652329947
Division: CED
Family Code: FAMSTU
Country of Origin: US
Unit of Measure: EA
Height: 56 IN | 142.240 CM
Length: 52 IN | 132.080 CM
Width: 41 IN | 104.140 CM
Volume: 69.013 FT3 | 1.954 M3
Shipping Weight: 310 LBS | 140.614 KG
HTS Code (CA): 8424200000
HTS Code (US): 8424209000
Fluid Inlet Size (cm): 7.62
Fluid Inlet Size (in): 3
Fluid Inlet Size (mm): 76.2
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (mm): 38.1
Frame Configuration: Cart
Includes: Pole Applicator, 50 ft (15.2 m) Hose, Material Hopper, Remote On/Off Switch
Maximum Hose Length (ft): 100
Maximum Hose Length (m): 30.5
Maximum Sound Pressure Level (dB(A)): 80.5
Maximum Working Pressure (bar): 41.3
Maximum Working Pressure (kPa): 4130
Maximum Working Pressure (psi): 600
Model: ToughTek
Series: S340e
Weight (kg): 95.3
Maximum Working Pressure (MPa): 4.1
Mount Type: Cart Mount
Material Application: Liquid Waterproofing
Maximum Input Amperage (A): 15
Input Voltage (V ac): 120

Documents

3A3437.pdf Download

3J0262EN.pdf Download
