TOUGHTEK System,p-40,220v,3ph

Type: Progressive Cavity Pumps

SKU 25M050

UPC 755652370949

Brand Graco

$21,816.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

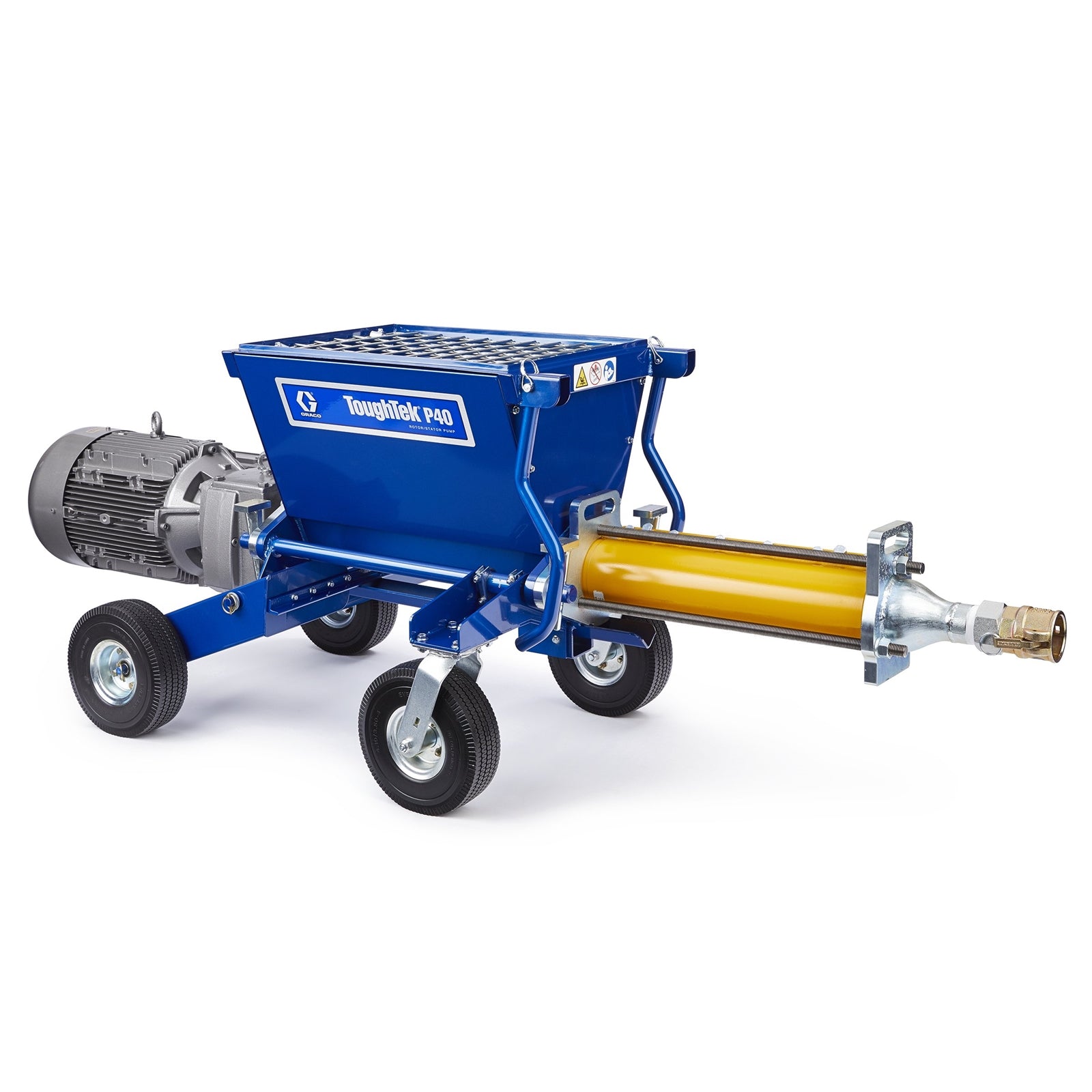

ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph

TOUGHTEK SYSTEM,P-40,220V,3PH

Product Specifications

UPC Product: 755652370949
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
Height: 64 IN | 162.560 CM
Length: 84.25 IN | 213.995 CM
Width: 47 IN | 119.380 CM
Volume: 146.657 FT3 | 4.153 M3
Shipping Weight: 818 LBS | 371.039 KG
HTS Code (US): 8413400000
HTS Code (CA): 8413400000
Fluid Inlet Size (cm): 10.7
Fluid Inlet Size (in): 4.22
Fluid Inlet Size (mm): 107.1880
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Male
Material Output (bags/hr): 300
Maximum Working Pressure (bar): 41.4
Maximum Working Pressure (kPa): 4140
Maximum Working Pressure (psi): 600
Overall Height (cm): 78.74
Overall Height (ft): 2.58
Overall Height (in): 31
Overall Height (m): 0.79
Overall Height (mm): 787.4
Overall Length (cm): 213
Overall Length (ft): 7
Overall Length (in): 84
Overall Length (m): 2.13
Overall Length (mm): 2134
Overall Width (cm): 73.66
Overall Width (ft): 2.42
Overall Width (in): 29
Overall Width (m): 0.74
Overall Width (mm): 736.60
Power Rating (HP): 15
Power Rating (kW): 11.19
Power Rating (W): 11186
Weight (kg): 240.4
Maximum Working Pressure (MPa): 4.1
Series: P40
Model: ToughTek

Documents

3A4361.pdf Download
