• TOUGHTEK System,p-30 Ht,220v,1ph,epoxy

    TOUGHTEK System,p-30 Ht,220v,1ph,epoxy

    Type: Progressive Cavity Pumps
    SKU 25M032
    UPC 755652372264
    Brand Graco
    $19,490.40
    Shipping calculated at checkout.

    Stock adequate! Ready to ship

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • JCB
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with
    Share to:
    View Full Details
    1 / 1
    Press & drag to view
    Product DetailsRelated ProductsRecently Viewed

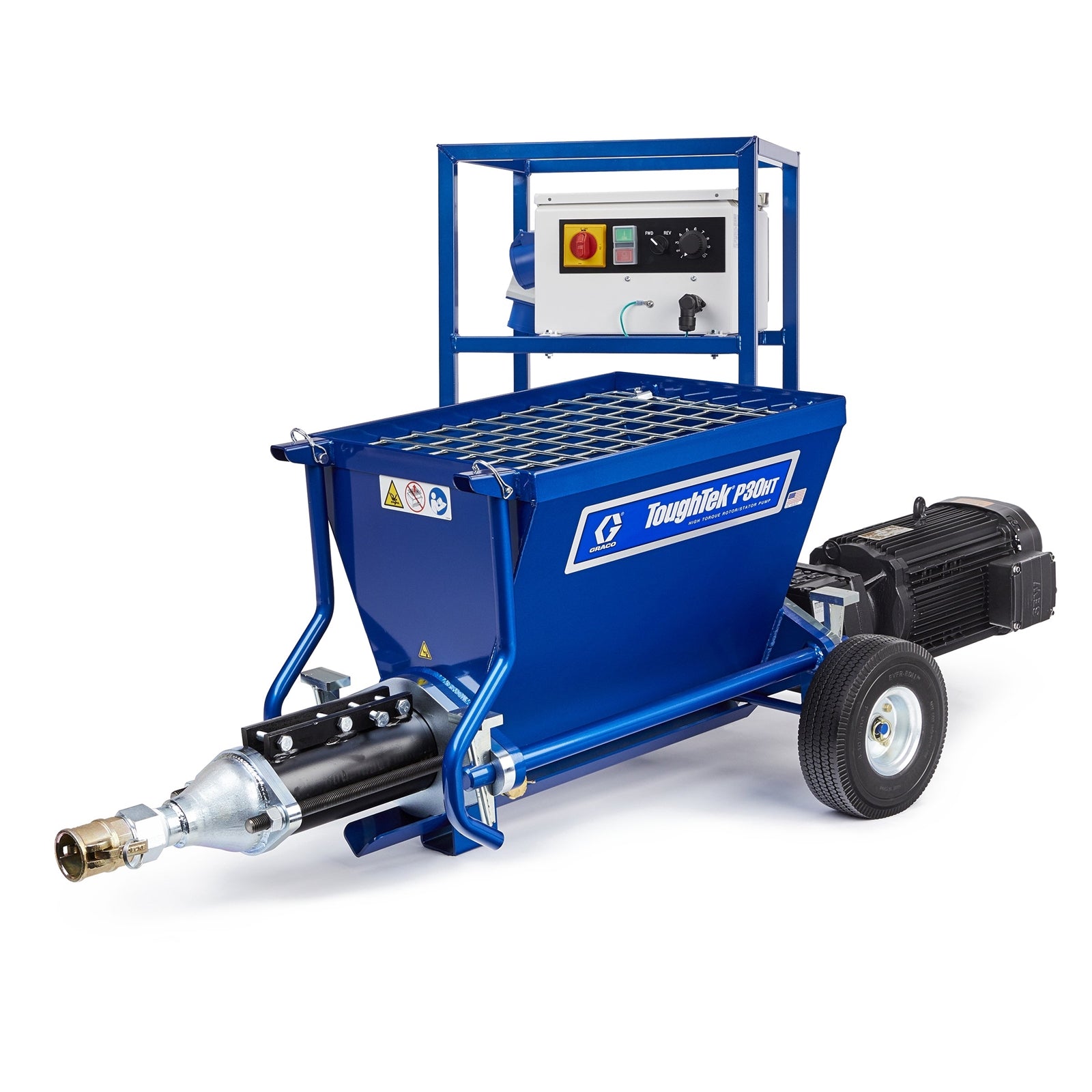

    ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph

    TOUGHTEK SYSTEM,P-30 HT,220V,1PH,EPOXY

    Product Specifications
    • UPC Product: 755652372264
    • Division: CED
    • Family Code: FAMMEG
    • Country of Origin: US
    • Unit of Measure: EA
    • Height: 45 IN | 114.300 CM
    • Length: 88 IN | 223.520 CM
    • Width: 42 IN | 106.680 CM
    • Volume: 96.25 FT3 | 2.725 M3
    • Shipping Weight: 600 LBS | 272.155 KG
    • HTS Code (US): 8413400000
    • HTS Code (CA): 8413400000
    • Fluid Inlet Size (cm): 9.7
    • Fluid Inlet Size (in): 3.8
    • Fluid Inlet Size (mm): 96.5200
    • Fluid Outlet Size (cm): 3.81
    • Fluid Outlet Size (mm): 38.1
    • Fluid Outlet Thread Gender: Male
    • Maximum Working Pressure (bar): 20.7
    • Maximum Working Pressure (kPa): 2070
    • Maximum Working Pressure (psi): 300
    • Overall Height (cm): 60.96
    • Overall Height (ft): 2
    • Overall Height (in): 24
    • Overall Height (m): 0.61
    • Overall Height (mm): 609.6
    • Overall Length (cm): 178
    • Overall Length (ft): 5.83
    • Overall Length (in): 70
    • Overall Length (m): 1.78
    • Overall Length (mm): 1778
    • Overall Width (cm): 63.50
    • Overall Width (ft): 2.08
    • Overall Width (in): 25
    • Overall Width (m): 0.64
    • Overall Width (mm): 635
    • Power Rating (HP): 7.5
    • Power Rating (kW): 5.59
    • Power Rating (W): 5593
    • Weight (kg): 136.1
    • Maximum Working Pressure (MPa): 2.1
    • Series: P30HT
    • Model: ToughTek
    Documents
    3A4361.pdf Download
