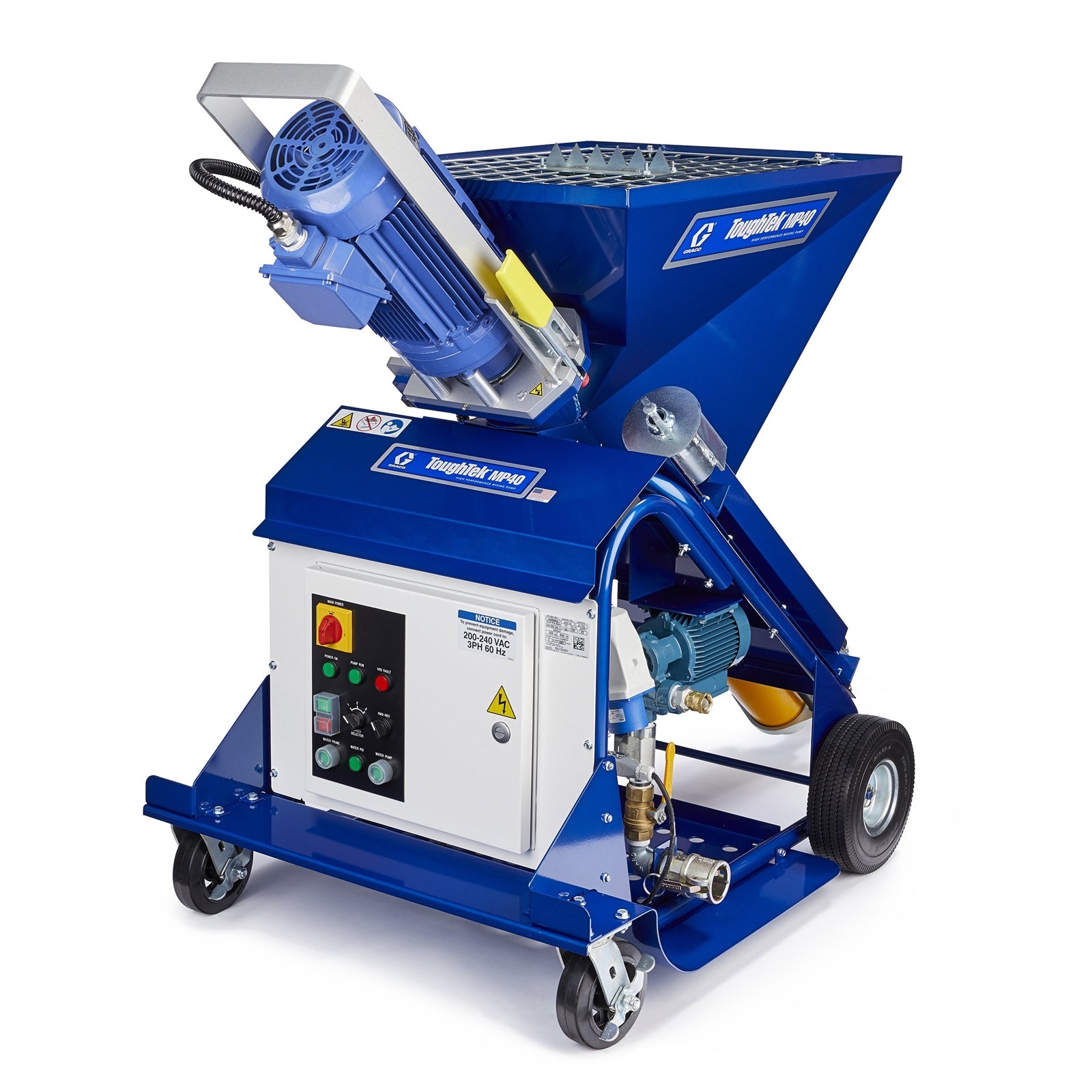

TOUGHTEK System,mp-40,220v,3ph,60hz,w/ WP

Type: Progressive Cavity Pumps

SKU 25M062

UPC 755652372325

Brand Graco

$28,324.80

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

ToughTek MP40 Mixing Pump

TOUGHTEK SYSTEM,MP-40,220V,3PH,60HZ,W/ WP

Product Specifications

UPC Product: 755652372325
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
Height: 63.5 IN | 161.290 CM
Length: 72.5 IN | 184.150 CM
Width: 38 IN | 96.520 CM
Volume: 101.24 FT3 | 2.867 M3
Shipping Weight: 674 LBS | 305.721 KG
Fluid Inlet Size (cm): 9.7
Fluid Inlet Size (in): 3.8
Fluid Inlet Size (mm): 96.5200
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Male
Material Output (bags/hr): 200
Maximum Working Pressure (bar): 20.7
Maximum Working Pressure (kPa): 2070
Maximum Working Pressure (psi): 300
Overall Height (cm): 134.62
Overall Height (ft): 4.42
Overall Height (in): 53
Overall Height (m): 1.35
Overall Height (mm): 1346.2
Overall Length (cm): 163
Overall Length (ft): 5.33
Overall Length (in): 64
Overall Length (m): 1.63
Overall Length (mm): 1626
Overall Width (cm): 81.92
Overall Width (ft): 2.69
Overall Width (in): 32.25
Overall Width (m): 0.82
Overall Width (mm): 819.15
Power Rating (HP): 7.5
Power Rating (kW): 5.59
Power Rating (W): 5593
Weight (kg): 204.1
Maximum Working Pressure (MPa): 2.1
Series: MP40
Model: ToughTek

Documents

3A4349.pdf Download

3J0254EN-A.pdf Download
