TOUGHTEK System,f800e,pkg,230v,30a,1ph

Type: Piston Pumps

SKU 25M810

UPC 755652776406

Brand Graco

$26,280.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

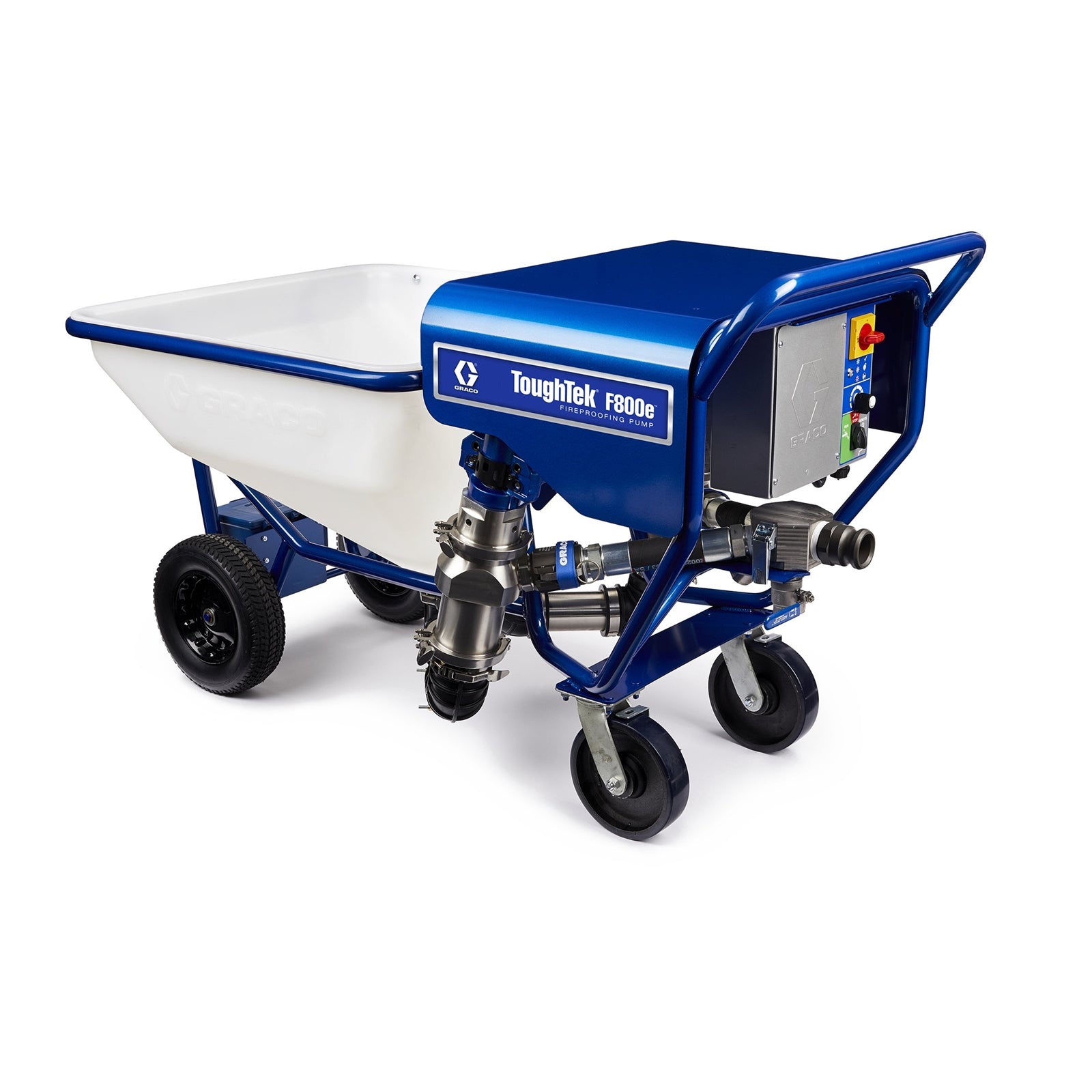

ToughTek F800e Package

TOUGHTEK SYSTEM,F800E,PKG,230V,30A,1PH

Product Specifications

UPC Product: 755652776406
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
HTS Code (CA): 8424200000
HTS Code (US): 8424209000
Fluid Outlet Size (mm): 50.8
Hopper Capacity (gal): 40
Includes: 200 ft (61 m) Hose, Pole Applicator, Adapters
Input Voltage (V ac): 230
Material Output (bags/hr): 40
Maximum Continuous Cycle Rate (CPM): 145
Maximum Flow Rate (L/min): 98.42
Maximum Hose Length (ft): 300
Maximum Input Amperage (A): 15;30
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 41
Maximum Working Pressure (kPa): 4100
Maximum Working Pressure (psi): 600
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Model: ToughTek
Portable: Portable
Power Rating (HP): 4.5
Series: F800e
Weight (kg): 175
Maximum Working Pressure (MPa): 4.1

Documents

3A5637.pdf Download

3A5653.pdf Download

350025EN-A.pdf Download
