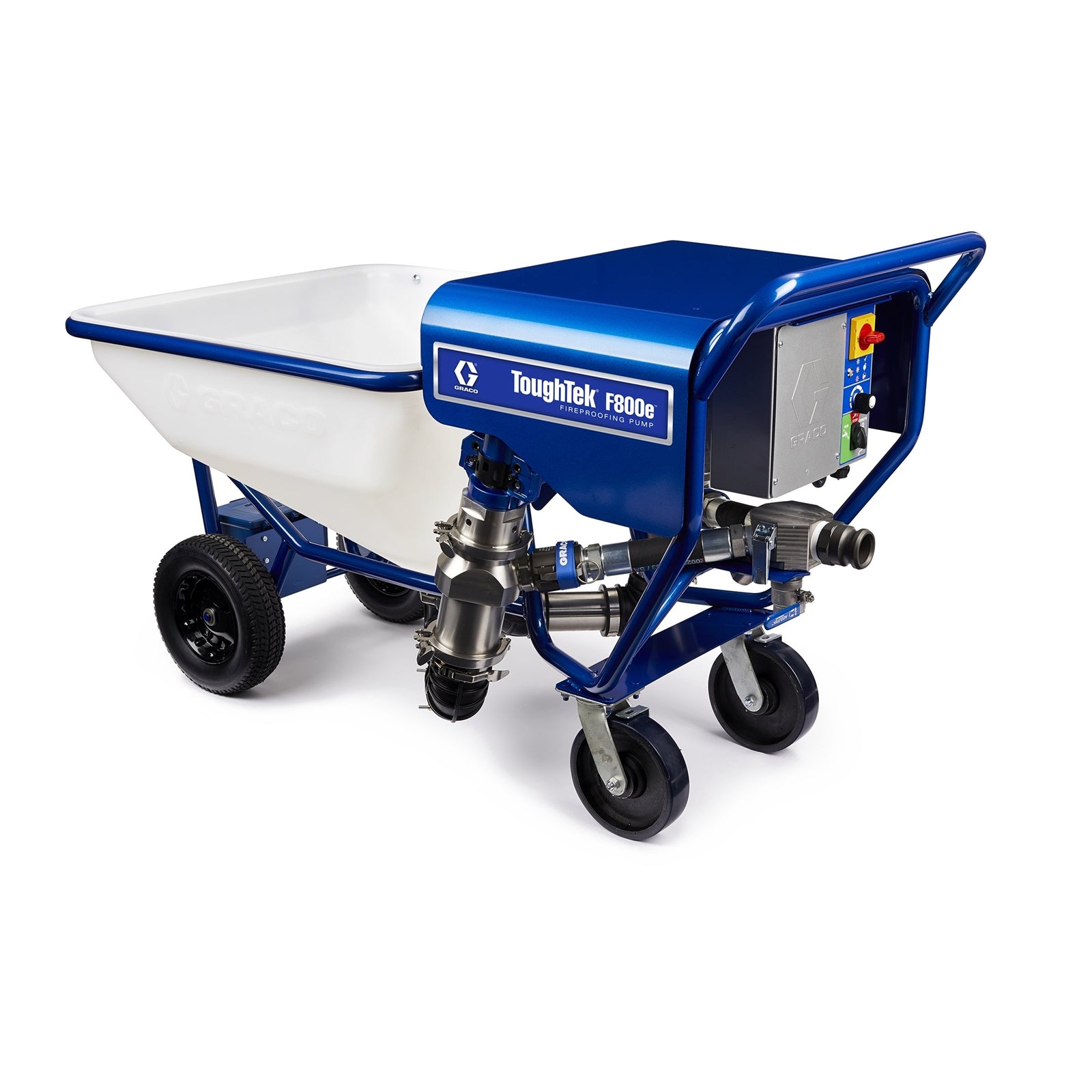

TOUGHTEK System,f800e,bare,230v,30a,1ph

Type: Piston Pumps

SKU 25M800

UPC 755652703082

Brand Graco

$19,915.20

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

ToughTek F800e System

TOUGHTEK SYSTEM,F800E,BARE,230V,30A,1PH

Product Specifications

UPC Product: 755652703082
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
Height: 53 IN | 134.620 CM
Length: 73 IN | 185.420 CM
Width: 37 IN | 93.980 CM
Volume: 82.843 FT3 | 2.346 M3
Shipping Weight: 518 LBS | 234.961 KG
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Fluid Inlet Size (in): 3
Fluid Inlet Size (mm): 76.2
Fluid Outlet Size (mm): 50.8
Hopper Capacity (gal): 40
Includes: Bare Pump
Maximum Flow Rate (L/min): 98.42
Maximum Hose Length (ft): 300
Maximum Input Amperage (A): 15;30
Maximum Working Pressure (bar): 41
Maximum Working Pressure (kPa): 4100
Maximum Working Pressure (psi): 600
Model: ToughTek
Portable: Portable
Power Rating (HP): 4.5
Series: F800e
Weight (kg): 17.4790
Maximum Working Pressure (MPa): 4.1

Documents

3A5653.pdf Download

350025EN-A.pdf Download
