TOUGHTEK System,f340e,120v,bare W/remote

Type: Piston Pumps

SKU 25B502

UPC 755652820659

Brand Graco

$11,282.40

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

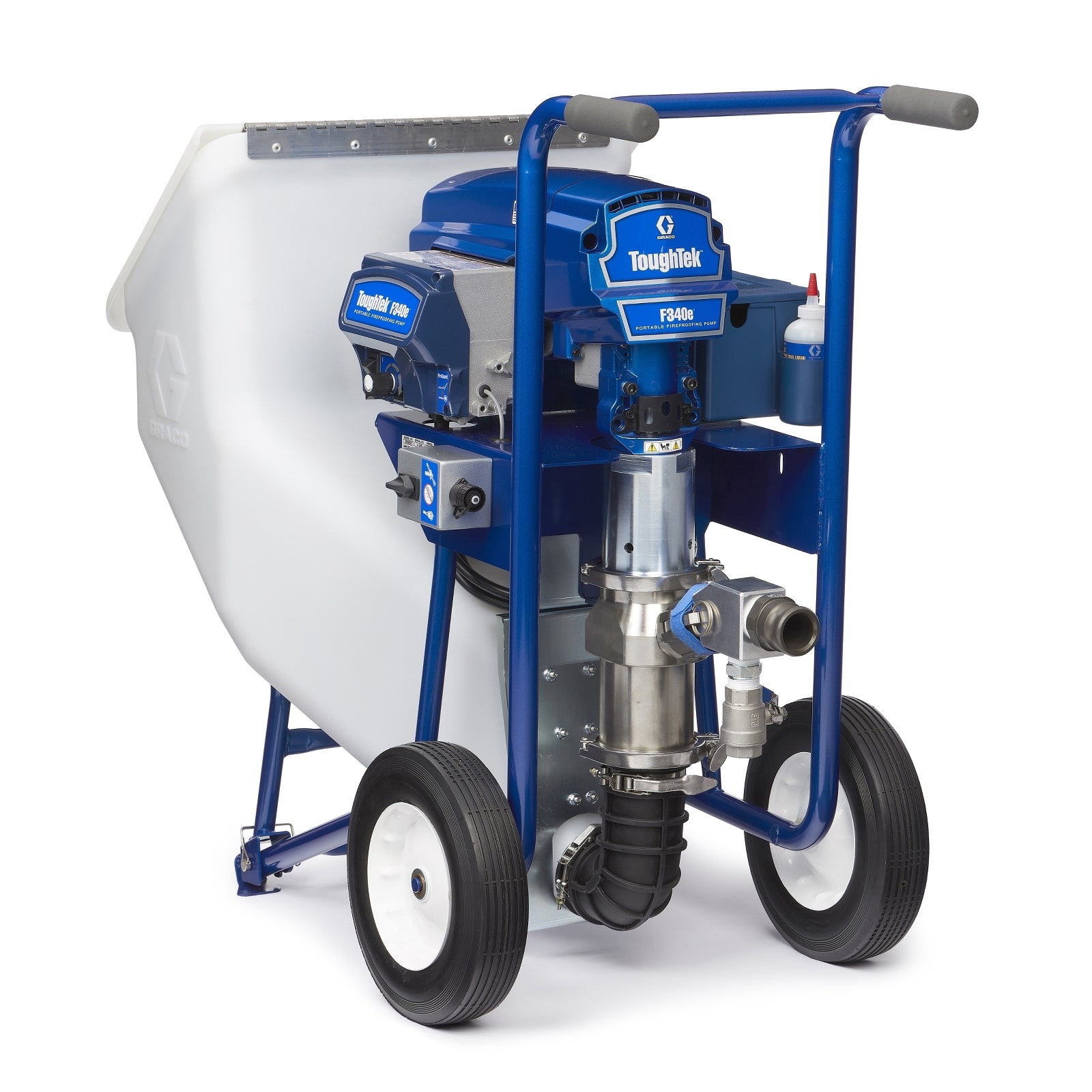

ToughTek F340e Cementitious Fireproofing Sprayer, 120V

TOUGHTEK SYSTEM,F340E,120V,BARE W/REMOTE

Product Specifications

UPC Product: 755652820659
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
Height: 56.5 IN | 143.510 CM
Length: 51.5 IN | 130.810 CM
Width: 41 IN | 104.140 CM
Volume: 69.039 FT3 | 1.955 M3
Shipping Weight: 309 LBS | 140.160 KG
HTS Code (CA): 8424200000
HTS Code (US): 8424209000
Fluid Outlet Size (mm): 38.1
Hopper Capacity (gal): 20
Input Voltage (V ac): 120
Material Output (bags/hr): 20
Maximum Continuous Cycle Rate (CPM): 150
Maximum Flow Rate (L/min): 24.61
Maximum Hose Length (ft): 150
Maximum Input Amperage (A): 15
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 41.3
Maximum Working Pressure (kPa): 4130
Maximum Working Pressure (psi): 600
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Model: ToughTek
Portable: Portable
Power Rating (HP): 2
Series: F340e
Weight (kg): 93
Maximum Working Pressure (MPa): 4.1

Documents

3A6393.pdf Download

3J0253EN-A.pdf Download
