TOUGHTEK Sprayer,mortar,m680a CS

Type: Piston Pumps

SKU 25M572

UPC 755652652496

Brand Graco

$11,872.80

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

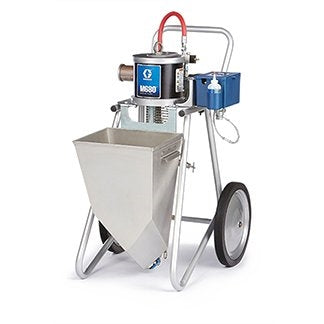

ToughTek M680a CS System

TOUGHTEK SPRAYER,MORTAR,M680A CS

Product Specifications

UPC Product: 755652652496
Division: CED
Family Code: FAMMEG
Country of Origin: US
Unit of Measure: EA
Height: 63 IN | 160.020 CM
Length: 38 IN | 96.520 CM
Width: 29.5 IN | 74.930 CM
Volume: 40.87 FT3 | 1.157 M3
Shipping Weight: 266 LBS | 120.656 KG
Fluid Outlet Size (mm): 38.1
Hopper Capacity (gal): 10
Material Output (bags/hr): 40
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (L/min): 41.2
Maximum Hose Length (ft): 100
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 41
Maximum Working Pressure (kPa): 4100
Maximum Working Pressure (psi): 600
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Model: ToughTek
Portable: Portable
Series: M680a CS
Weight (kg): 113
Maximum Working Pressure (MPa): 4.1

Documents

312796.pdf Download

308167.pdf Download

332612.pdf Download

3A5275.pdf Download

332651.pdf Download

3J0395EN-A.pdf Download
