T3 Pump,cs

Type: Piston Pumps

SKU 24Z834

UPC 755652419785

Brand Graco

$1,627.20

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

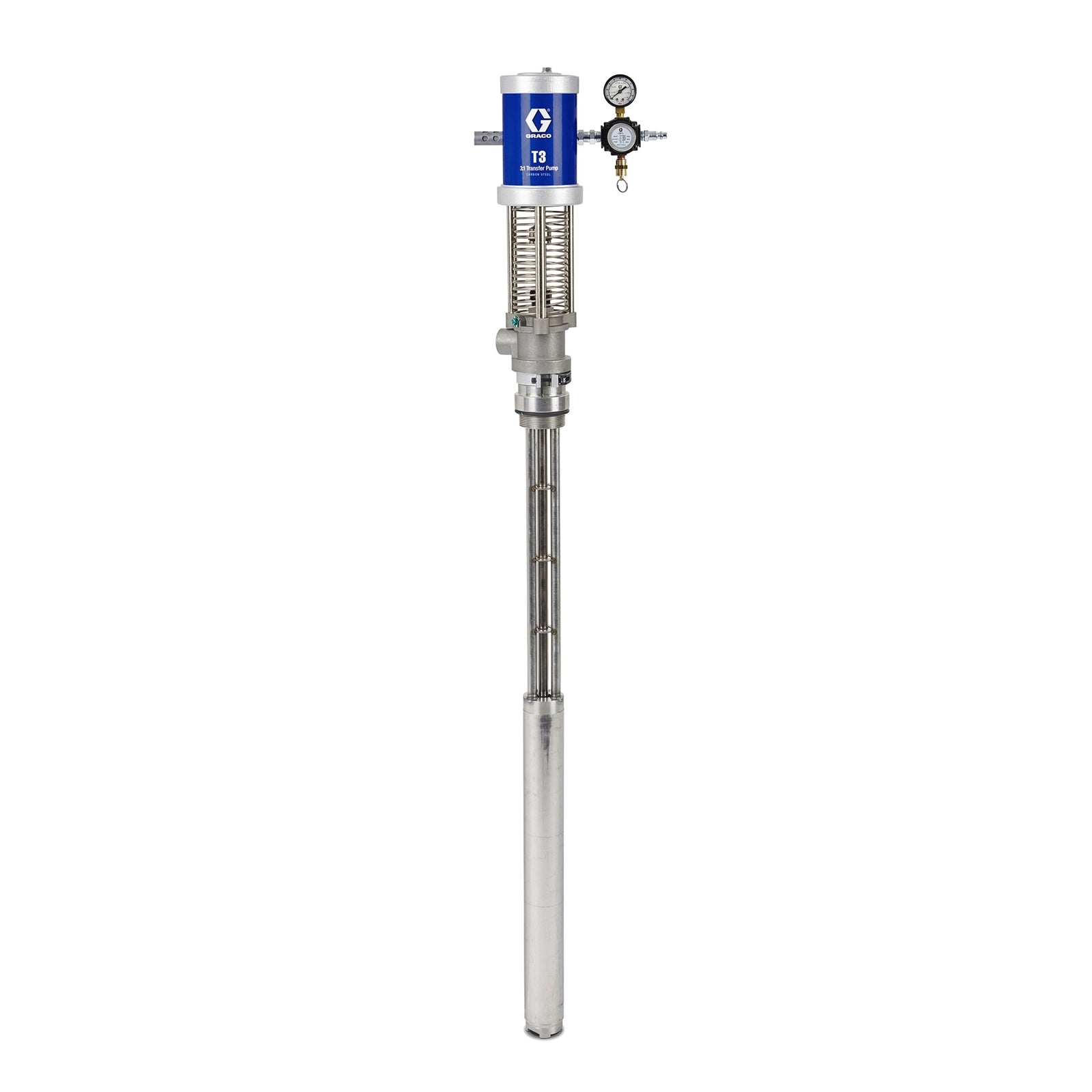

T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio

T3 PUMP,CS

Product Specifications

UPC Product: 755652419785
Division: CED
Family Code: FAMRSP
Country of Origin: CN
Unit of Measure: EA
Height: 8.25 IN | 20.955 CM
Length: 60 IN | 152.400 CM
Width: 7.75 IN | 19.685 CM
Volume: 2.22 FT3 | 0.063 M3
Shipping Weight: 28.2 LBS | 12.791 KG
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (L/min): 17.03
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Maximum Working Pressure (bar): 21.7
Maximum Working Pressure (kPa): 2170
Maximum Working Pressure (psi): 315
Model: T3
Series: Carbon Steel
Weight (kg): 10
Maximum Working Pressure (MPa): 2.2
Maximum Air Inlet Pressure (MPa): 0.69

Documents

3A5180.pdf Download
