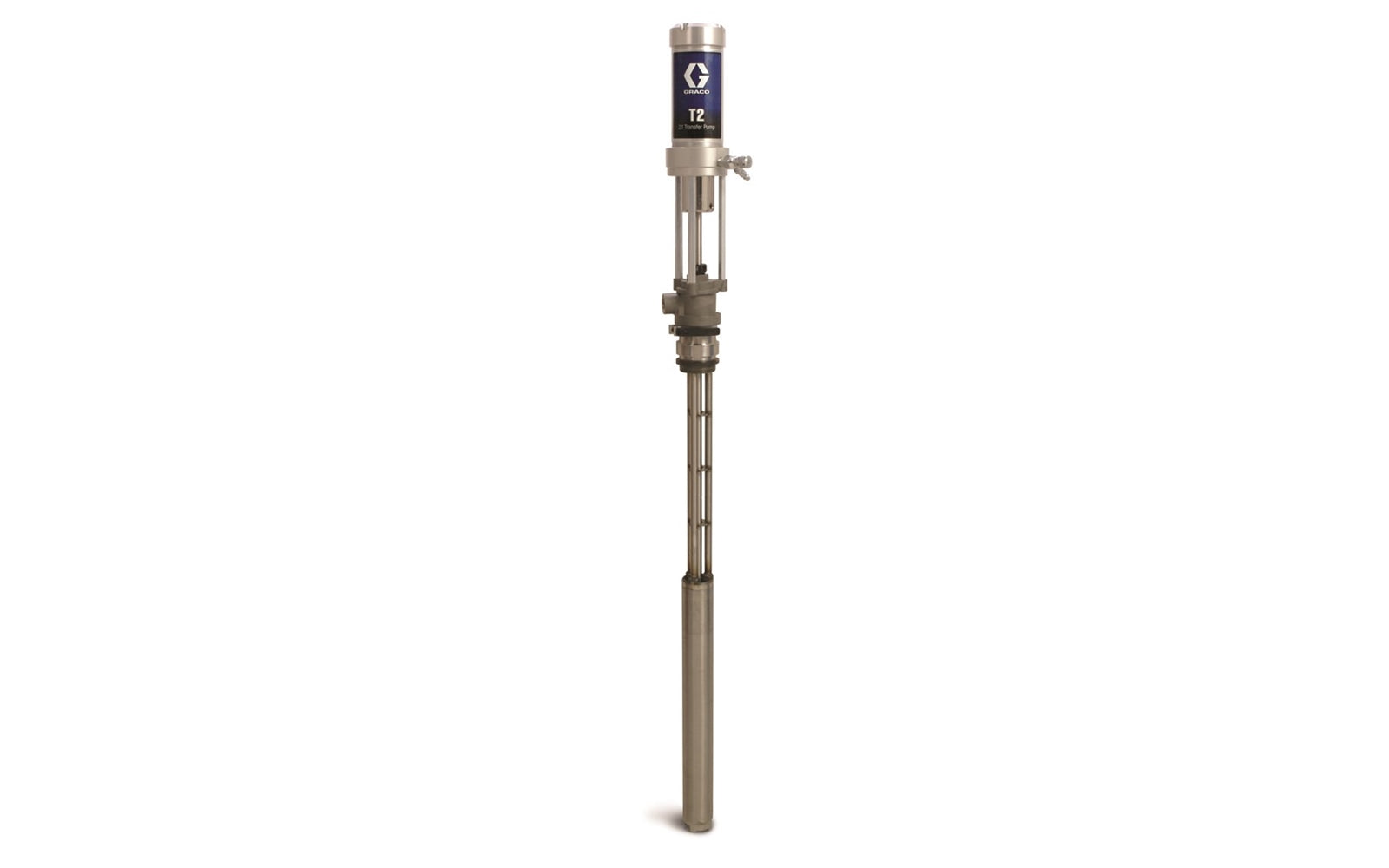

T2 Pump, Transfer, 2:1

Type: Piston Pumps

SKU 295616

UPC 633955121140

Brand Graco

$2,524.80

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

T2 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

T2 PUMP, TRANSFER, 2:1

Product Specifications

UPC Product: 633955121140
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
Height: 6 IN | 15.240 CM
Length: 57.6 IN | 146.304 CM
Width: 6 IN | 15.240 CM
Volume: 1.2 FT3 | 0.034 M3
Shipping Weight: 26 LBS | 11.793 KG
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Air Inlet Size (in): 1/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Air Inlet Thread Gender: Female
Air Inlet Size (mm): 6.35
Maximum Air Inlet Pressure (bar): 12.5
Maximum Air Inlet Pressure (psi): 180
Maximum Flow Rate (L/min): 20
Maximum Continuous Cycle Rate (CPM): 100
Maximum Working Pressure (bar): 28
Maximum Working Pressure (psi): 405
Model: T2
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Weight (kg): 9.5

Documents

311882.pdf Download

338788EN-D.pdf Download
