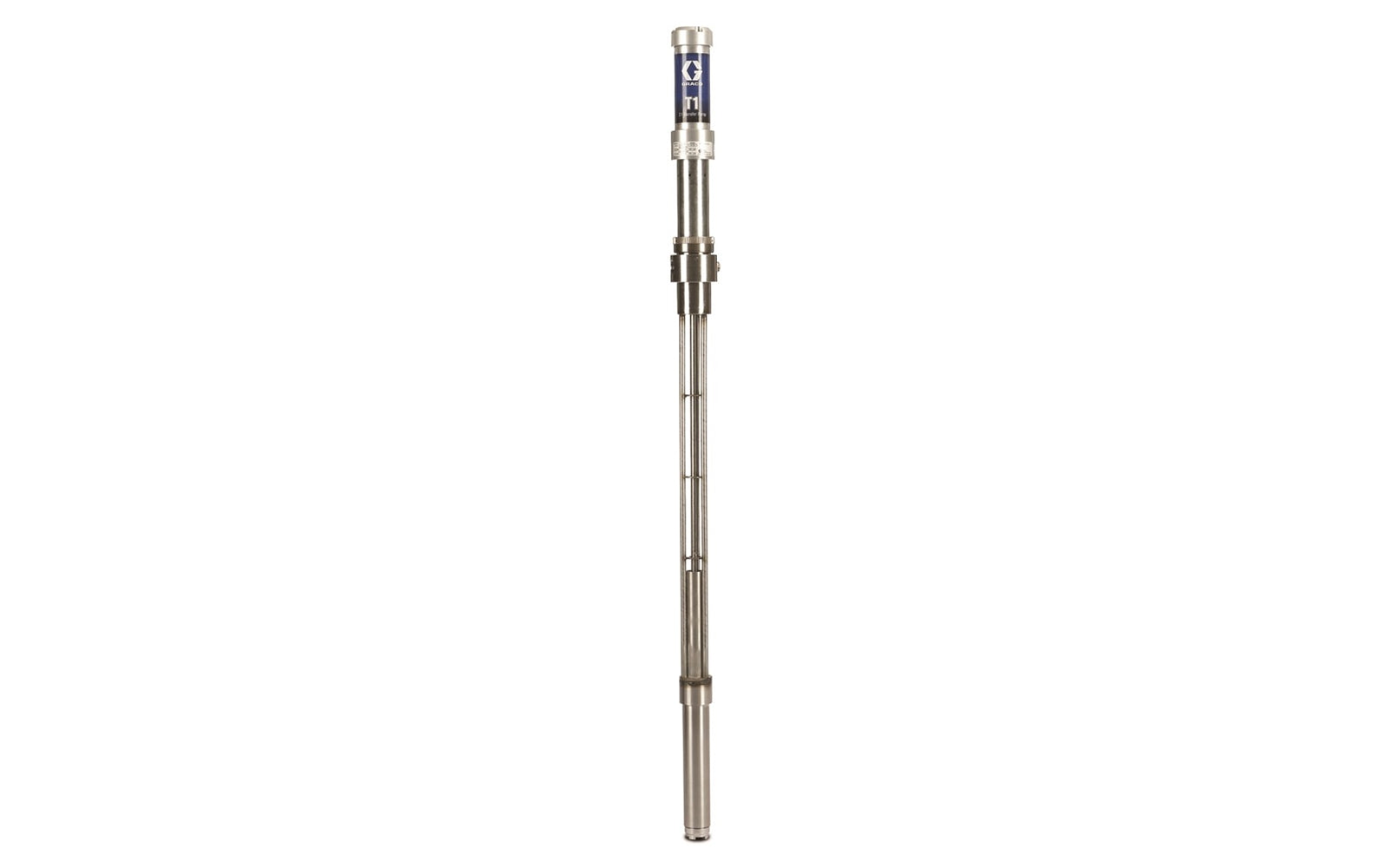

T1 PUMP

Type: Piston Pumps

SKU 256200

UPC 633955322837

Brand Graco

$1,848.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

T1 PUMP

Product Specifications

UPC Product: 633955322837
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
Height: 4.8 IN | 12.192 CM
Length: 56.4 IN | 143.256 CM
Width: 4.8 IN | 12.192 CM
Volume: .75 FT3 | 0.021 M3
Shipping Weight: 20.1 LBS | 9.117 KG
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Cycles Per Gallon: 40
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
Maximum Air Inlet Pressure (bar): 12.5
Maximum Air Inlet Pressure (kPa): 1250
Maximum Air Inlet Pressure (psi): 180
Maximum Continuous Cycle Rate (CPM): 100
Maximum Flow Rate (L/min): 9.5
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Working Pressure (bar): 25
Maximum Working Pressure (kPa): 2500
Maximum Working Pressure (psi): 360
Model: T1
Sound Pressure Level (dB(A)): 88.7
Weight (kg): 8.4
Maximum Working Pressure (MPa): 2.5
Maximum Air Inlet Pressure (MPa): 1.2
