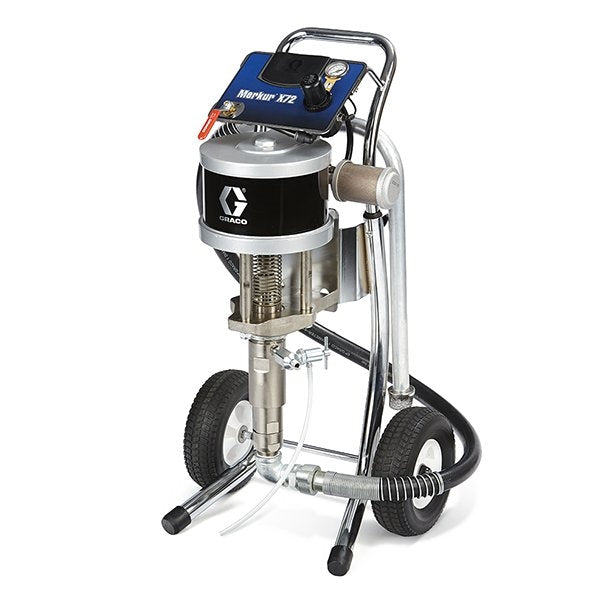

• Graco MERKUR System pump assembly for airless sprayers, model X72, shown in a detailed close-up image.
    • Graco MERKUR System pump assembly for airless sprayers, model X72, shown in a detailed close-up image.

    MERKUR System,pump Assy,x72

    Type: Airless Sprayers
    4.5' (1201 Reviews)
    SKU 16U918
    UPC 633955026513
    Brand Graco
    $7,341.60
    Shipping calculated at checkout.

    Stock adequate! Ready to ship

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • JCB
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with
    Share to:
    View Full Details
    • Graco MERKUR System pump assembly for airless sprayers, model X72, shown in a detailed close-up image.
    1 / 1
    Press & drag to view
    Product DetailsRelated ProductsRecently Viewed

    Merkur 72:1 Cart-Mount Airless Sprayer Package, XTR-7 Gun, 519 XHD Tip, 25 ft (7.6 m) Hose, 6 ft (1.8 m) Whip Hose

    MERKUR SYSTEM,PUMP ASSY,X72

    Product Specifications
    • UPC Product: 633955026513
    • Division: CED
    • Family Code: FAMXTM
    • Country of Origin: US
    • Unit of Measure: EA
    • Height: 39.6 IN | 100.584 CM
    • Length: 24 IN | 60.960 CM
    • Width: 18 IN | 45.720 CM
    • Volume: 9.9 FT3 | 0.280 M3
    • Shipping Weight: 128.6 LBS | 58.332 KG
    • HTS Code (CA): 8424200000
    • HTS Code (US): 8424209000
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Outlet Size (mm): 9.525
    • Frame Configuration: Cart
    • Hose Inlet Diameter (cm): 0.9525
    • Hose Inlet Diameter (in): 3/8
    • Hose Inlet Diameter (mm): 9.525
    • Includes: XTR-7 Spray Gun, 519 XHD Tip, Fluid Hose
    • Maximum Sound Pressure Level (dB(A)): 68.9
    • Maximum Tip Size (in): 0.021
    • Maximum Working Pressure (psi): 7250
    • Maximum Working Pressure (kPa): 50000
    • Maximum Working Pressure (MPa): 50
    • Pressure Control Type: Air Regulator
    • Model: Merkur
    • Maximum Working Pressure (bar): 500
    • Weight (kg): 45
    • Series: X48/X72
    • Pump Rod Type: Carbon Steel
    • Number of Guns: 1
    • Mount Type: Cart Mount
    • Pump Pressure Ratio: 72:1
    • Lower Configuration: Carbon Steel;1-1/4 in. Inlet;Drain Valve
    • Mix Ratio: 72:1
    • Maximum Air Consumption (SCFM): 70
    • Maximum Air Inlet Pressure (psi): 100
    • Maximum Operating Temperature (°C): 71
    • Maximum Operating Temperature (°F): 160
    • Fluid Outlet Thread Gender: Male
    • Volume Per Cycle (cm³): 50
