MERKUR System,pump,36:1,100cc,cart,std
Type:
Airless Sprayers
SKU
G36C03
UPC 633955377257
Brand
Graco
Regular Price
$6,871.20
Shipping calculated at checkout.
Stock adequate! Ready to ship
Payment & Security
Your payment is secure. We don’t store or see your card details.
1 / 1
Press & drag to view

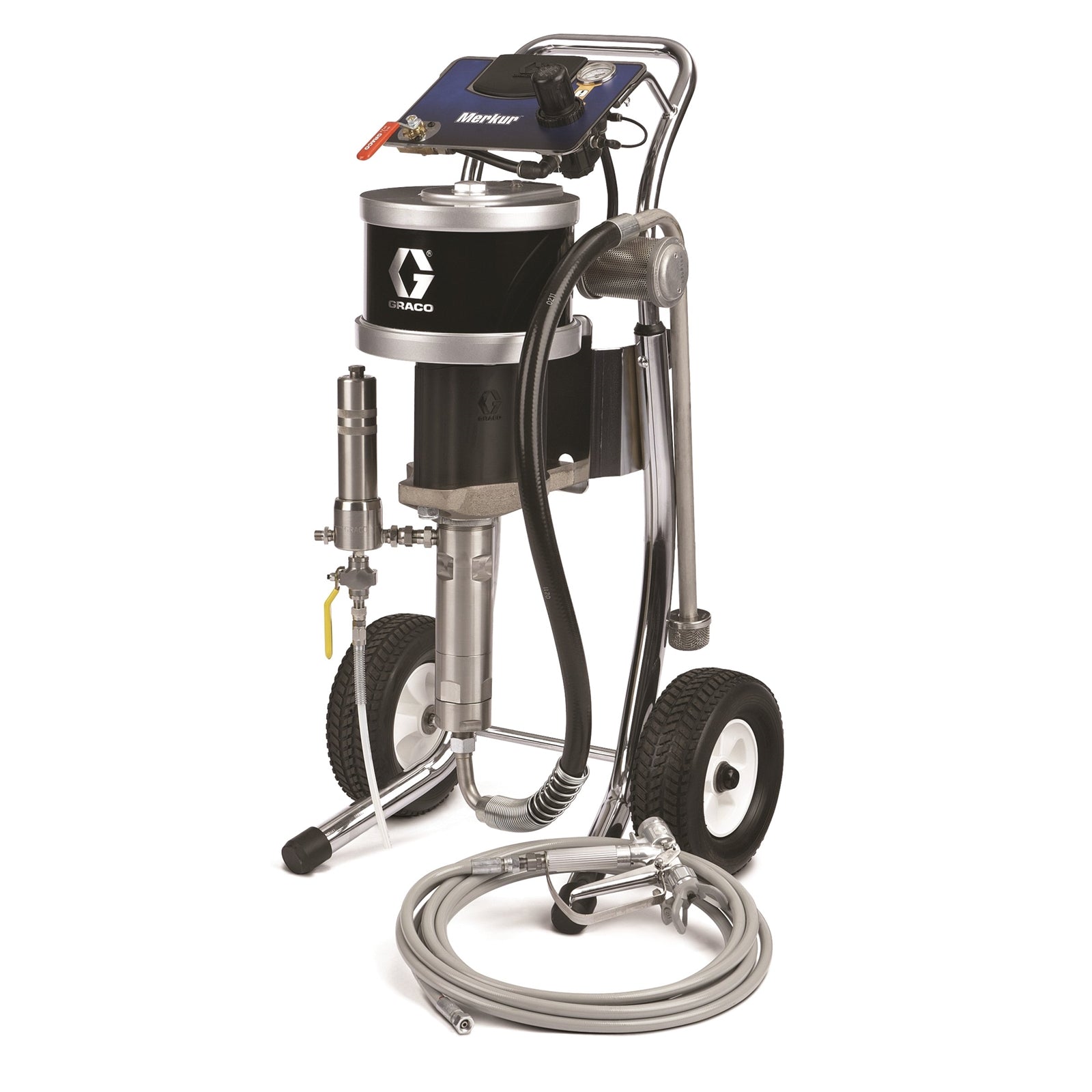

Merkur 36:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter
MERKUR SYSTEM,PUMP,36:1,100CC,CART,STD
Product Specifications
- UPC Product: 633955377257
- Division: CED
- Family Code: FAMXTM
- Country of Origin: US
- Unit of Measure: EA
- Height: 40.8 IN | 103.632 CM
- Length: 21.6 IN | 54.864 CM
- Width: 19.2 IN | 48.768 CM
- Volume: 9.79 FT3 | 0.277 M3
- Shipping Weight: 118 LBS | 53.524 KG
- HTS Code (CA): 8424200000
- HTS Code (US): 8424209000
- Compatible Replacement Pump: W36DAS
- Convertible: Non-Convertible
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Outlet Size (mm): 9.525;6.35
- Frame Configuration: Cart Mount
- Hose Inlet Diameter (cm): 0.635
- Hose Inlet Diameter (in): 1/4
- Hose Inlet Diameter (mm): 6.35
- Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
- Maximum Flow Rate (L/min): 6
- Maximum Sound Pressure Level (dB(A)): 68.9
- Maximum Tip Size (in): 0.029
- Maximum Working Pressure (psi): 3600
- Maximum Working Pressure (kPa): 24800
- Maximum Working Pressure (MPa): 24.8
- Pressure Control Type: Air Regulator
- Model: Merkur
- Maximum Working Pressure (bar): 248
- Weight (kg): 52
- Series: Standard
- Outlet Paint Filter: 60 Mesh Stainless Steel Screen
- Pump Rod Type: Carbon Steel
- Number of Guns: 1
- Mount Type: Cart Mount
- Product Type: Single Leg
- Material Application: Paints, Primers
- Pump Pressure Ratio: 36:1
- Lower Configuration: Stainless Steel;3/4 in. Inlet;Fluid Filter
- Mix Ratio: 36:1
- Maximum Air Consumption (SCFM): 26
- Maximum Air Inlet Pressure (psi): 100
- Fluid Outlet Thread Gender: Male
- Volume Per Cycle (cm³): 100
- Air Inlet Thread Gender: Female
- Air Inlet Size (in): 1/2
- Air Motor Displacement (cm³/stroke): 1800
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (psi): 100
- Fluid Inlet Thread Gender: Male
