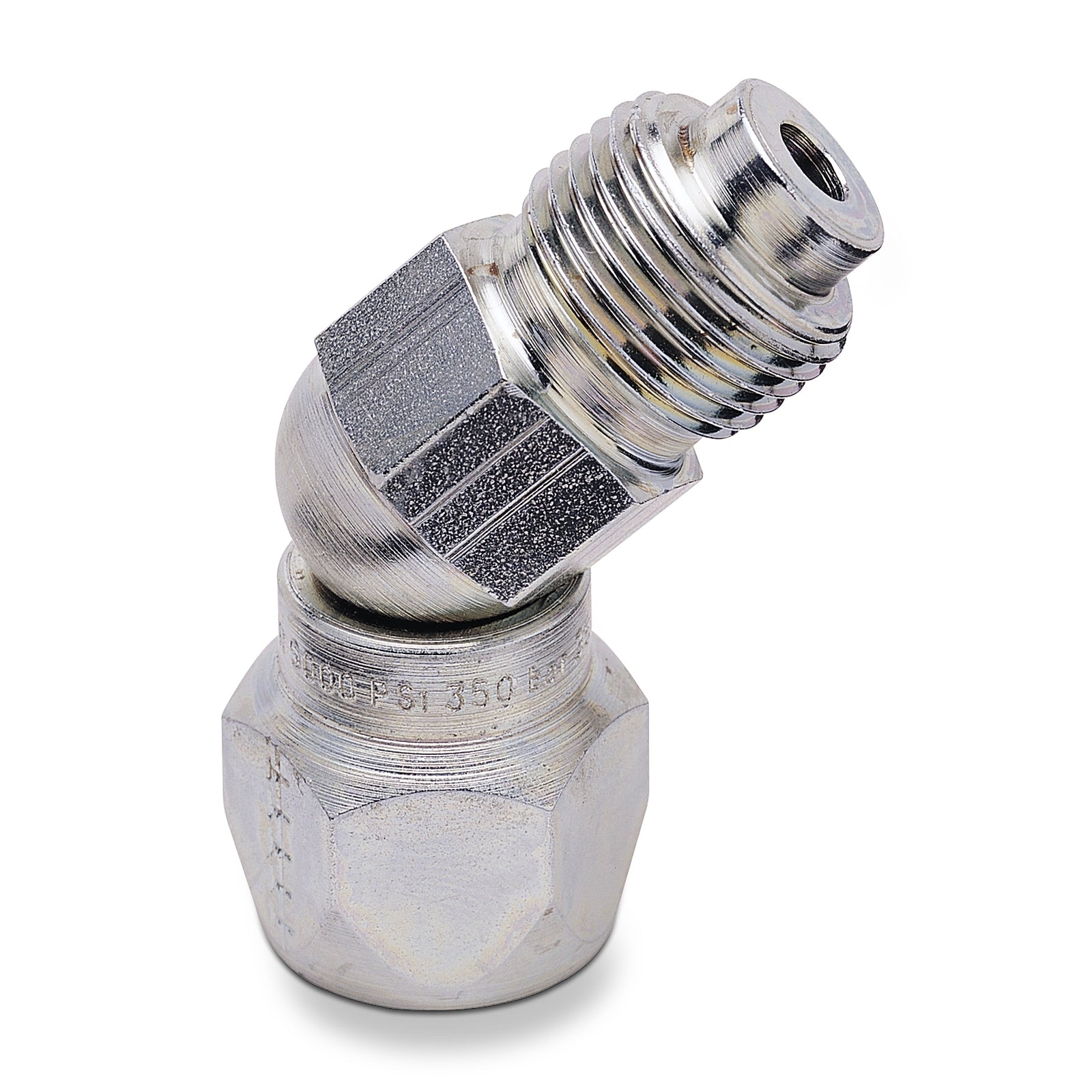

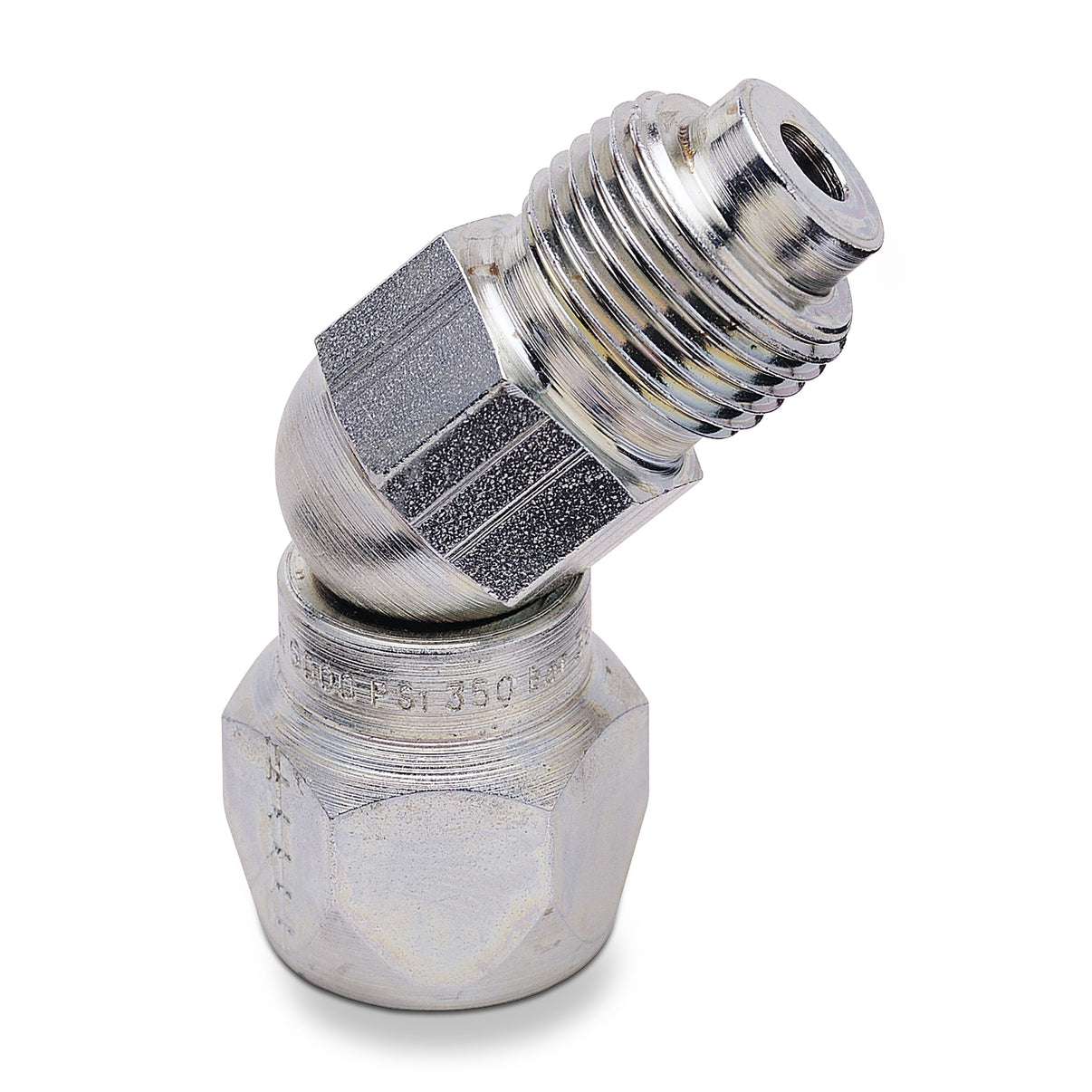

Kit, Union, Swivel, 45 DEG

Type: Fittings

SKU 224399

UPC 633955551138

Brand Graco

$39.27

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

45 Degree Adapter

KIT, UNION, SWIVEL, 45 DEG

Product Specifications

UPC Product: 633955551138
Division: CED
Family Code: FAMPTP
Country of Origin: US
Unit of Measure: EA
Height: 1.1 IN | 2.794 CM
Length: 4.7 IN | 11.938 CM
Width: 5.7 IN | 14.478 CM
Volume: .017 FT3 | 0.000 M3
Shipping Weight: .37 LBS | 0.168 KG
HTS Code (CA): 8424900090
HTS Code (US): 8424909080
For Use With: Extension Roller Kit
Maximum Working Pressure (bar): 250
Maximum Working Pressure (kPa): 25000
Maximum Working Pressure (psi): 3600
Overall Height (cm): 4.445
Overall Height (in): 1.75
Overall Height (mm): 44.45
Overall Length (cm): 2.54
Overall Length (in): 1
Overall Length (mm): 25.4
End A Inlet Size (mm): 22.225
End A Inlet Thread Gender: Male
End A Inlet Thread Type: UNF
End B Inlet Size (in): 0.875
End A Inlet Size (in): 0.875
End B Inlet Size (mm): 22.225
End B Inlet Thread Gender: Female
End B Inlet Thread Type: UNF
Model: Graco

Documents

344386EN.pdf Download
