Kit,complete,cs T3,air/fluid

Type: Piston Pumps

SKU 25D295

UPC 755652695271

Brand Graco

$4,128.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

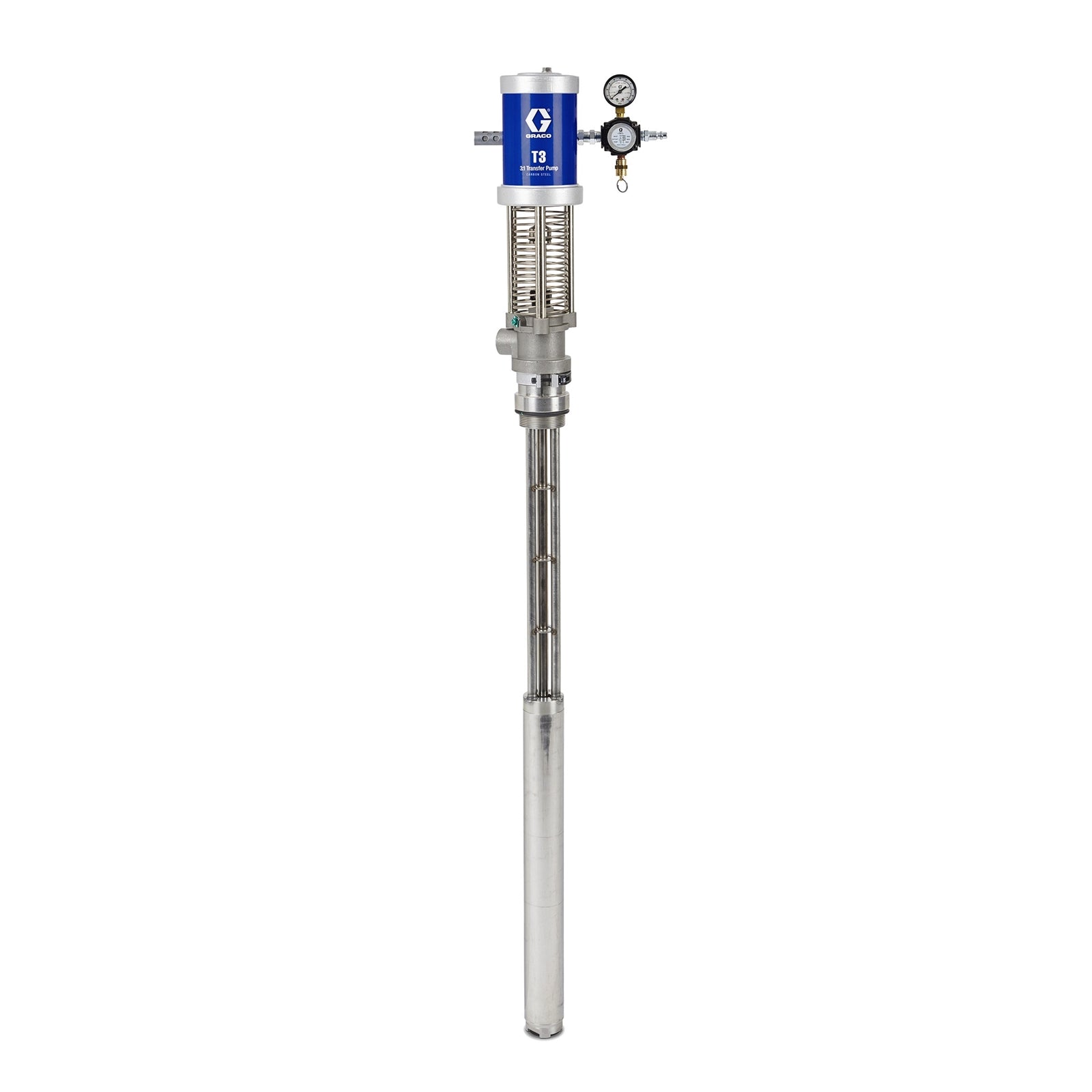

T3 Complete Package: Includes 2 Pumps (Carbon Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit

KIT,COMPLETE,CS T3,AIR/FLUID

Product Specifications

UPC Product: 755652695271
Division: CED
Family Code: FAMRSP
Country of Origin: CN
Unit of Measure: EA
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Cycles Per Gallon: 30
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Includes: Fluid Supply Kit, Air Hose Kit
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (L/min): 17.03
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Maximum Working Pressure (bar): 21.7
Maximum Working Pressure (kPa): 2170
Maximum Working Pressure (psi): 315
Model: T3
Series: Carbon Steel
Sound Pressure Level (dB(A)): 72.9
Weight (kg): 10
Maximum Working Pressure (MPa): 2.2
Maximum Air Inlet Pressure (MPa): 0.69

Documents

3A5180.pdf Download

309815.pdf Download
