Kit,complete,2:1(air/fluid)

Type: Piston Pumps

SKU 246081

UPC 633955030930

Brand Graco

$5,932.80

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

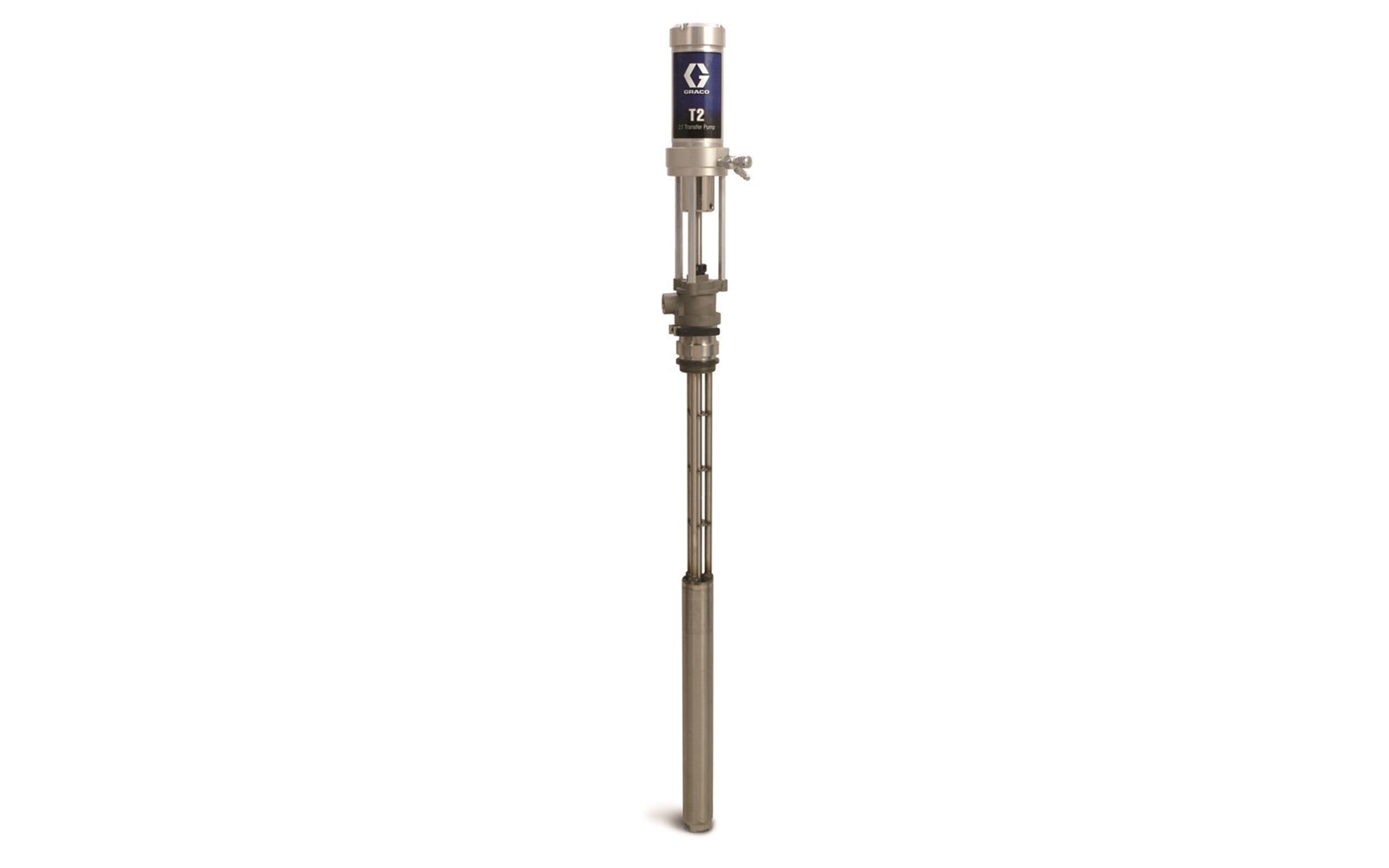

T2 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit

KIT,COMPLETE,2:1(AIR/FLUID)

Product Specifications

UPC Product: 633955030930
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Cycles Per Gallon: 15.9
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
For Use With: HFR Metering System
Maximum Air Inlet Pressure (bar): 12.5
Maximum Air Inlet Pressure (kPa): 1250
Maximum Air Inlet Pressure (psi): 180
Maximum Flow Rate (L/min): 19
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Maximum Working Pressure (bar): 28
Maximum Working Pressure (kPa): 2800
Maximum Working Pressure (psi): 405
Model: T2
Sound Pressure Level (dB(A)): 88.7
Weight (kg): 9.5
Maximum Working Pressure (MPa): 2.8
Maximum Air Inlet Pressure (MPa): 1.2

Documents

309815.pdf Download
