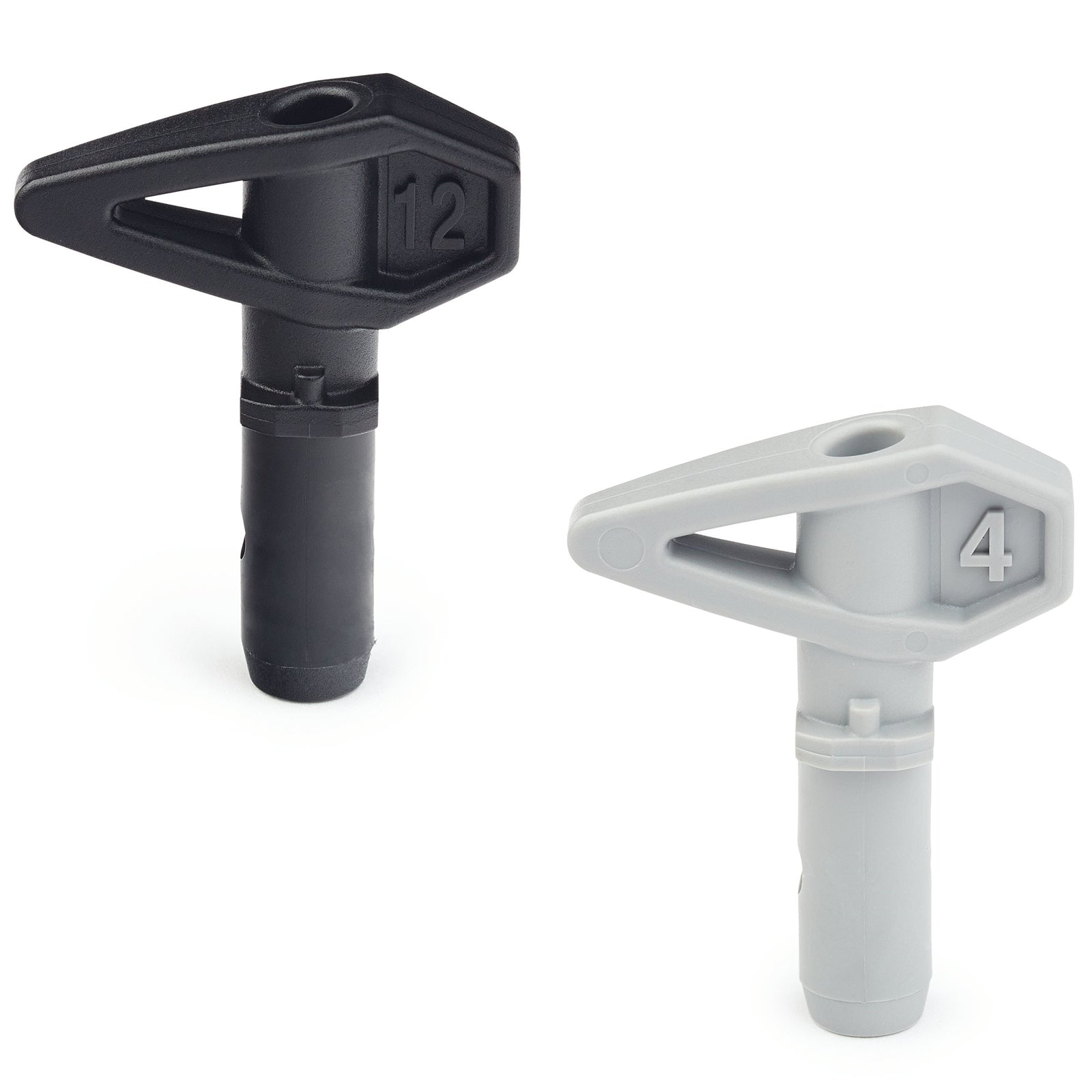

Kit, Accessory, SPRAY TIP

Type: Spray Tips & Modules

SKU 17A223

UPC 633955552562

Brand Graco

$25.72

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

TrueCoat 360 Spray Tips

KIT, ACCESSORY, SPRAY TIP

Product Specifications

UPC Product: 633955552562
Division: CED
Family Code: MISC
Country of Origin: US
Unit of Measure: EA
Height: .8 IN | 2.032 CM
Length: 5.25 IN | 13.335 CM
Width: 2.7 IN | 6.858 CM
Volume: .007 FT3 | 0.000 M3
Shipping Weight: .04 LBS | 0.018 KG
HTS Code (CA): 8424900090
HTS Code (US): 8424909080
Orifice Diameter (in): 0.015
Maximum Working Pressure (kPa): 10300
Maximum Working Pressure (psi): 1500
Maximum Working Pressure (bar): 103
For Use With: Magnum A5 Compact DS
Maximum Fan Width (in): 12
Maximum Fan Width (mm): 305
Tip Type: Airless
Maximum Fan Width (cm): 30.5
Maximum Flow Rate (L/min): 0.91
Minimum Fan Width (in): 4
Minimum Fan Width (mm): 102
Number of Pieces: 2
Model: TrueCoat 360
Series: Spray Tips
