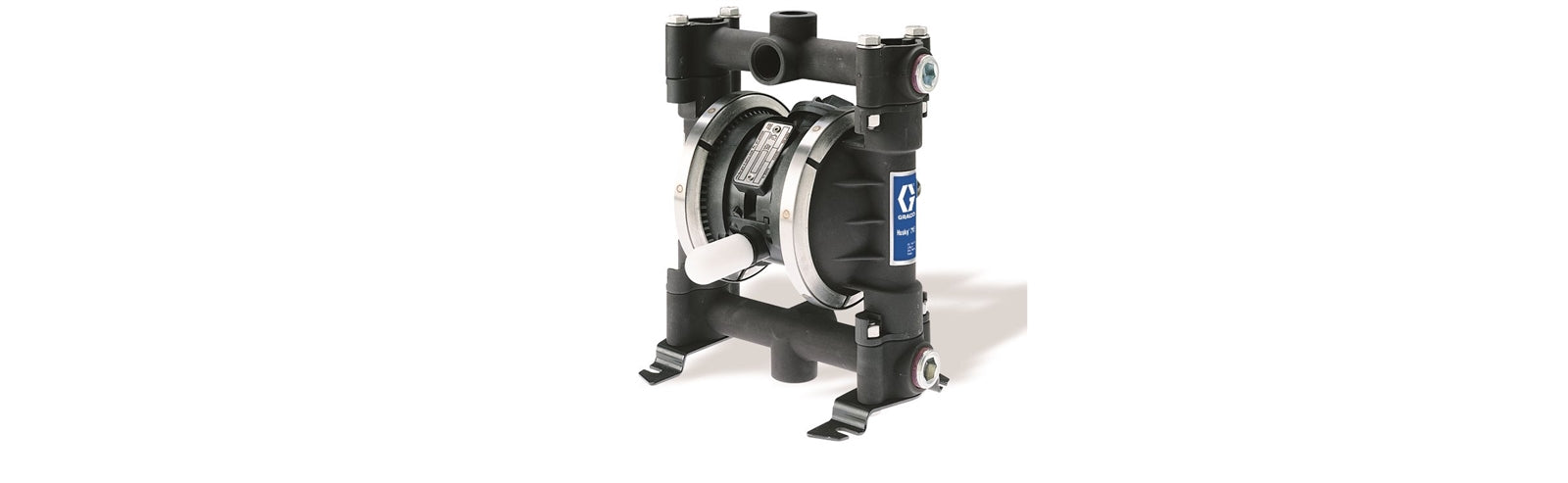

HUSKY Pump,716a-pp01aa1-4ssssptpt

Type: Diaphragm Pumps

SKU 246485

UPC 633955016804

Brand Graco

$1,209.60

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Husky 716 Diaphragm Pump

HUSKY PUMP,716A-PP01AA1-4SSSSPTPT

Product Specifications

UPC Product: 633955016804
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
Height: 8.2 IN | 20.828 CM
Length: 11.6 IN | 29.464 CM
Width: 10.8 IN | 27.432 CM
Volume: .595 FT3 | 0.017 M3
Shipping Weight: 11.19 LBS | 5.076 KG
HTS Code (US): 8413500050
HTS Code (CA): 8413500020
Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (psi): 100
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Model: Husky
Overall Height (in): 10.43
Series: 716
Maximum Fluid Pressure (MPa): 0.7
Maximum Air Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (kPa): 70
Maximum Working Pressure (bar): 7

Documents

308981.pdf Download
