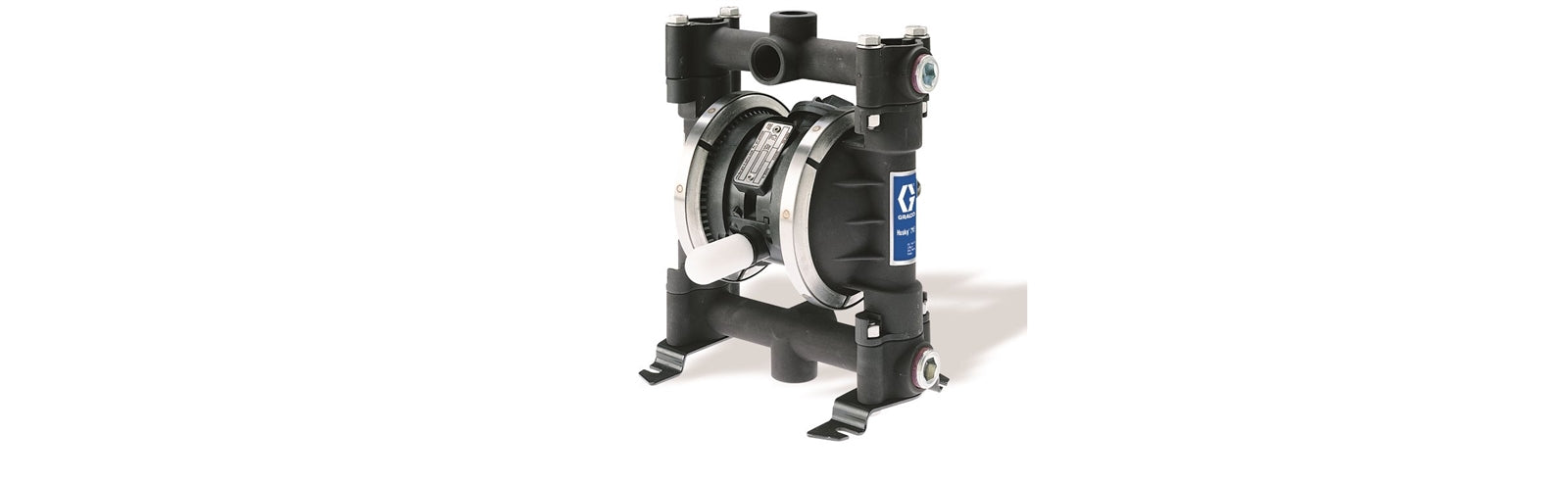

HUSKY Pump,716 DRUM W/riser

Type: Diaphragm Pumps

SKU 246367

UPC 633955010215

Brand Graco

$1,617.60

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Husky 716 Diaphragm Pump with Drum Riser Tube

HUSKY PUMP,716 DRUM W/RISER

Product Specifications

UPC Product: 633955010215
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
HTS Code (US): 8413500090
HTS Code (CA): 8413500090
Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (L/min): 28.4
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Model: Husky
Overall Height (in): 10.43
Series: 716
Maximum Fluid Pressure (MPa): 0.7
Maximum Air Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (kPa): 70
Maximum Working Pressure (bar): 7

Documents

308981.pdf Download

309815.pdf Download
