HUSKY Pump,515ac-pp01aac3-2acbnbnpt

Type: Diaphragm Pumps

4.5' (1201 Reviews)

SKU 246484

UPC 633955016842

Brand Graco

$1,536.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

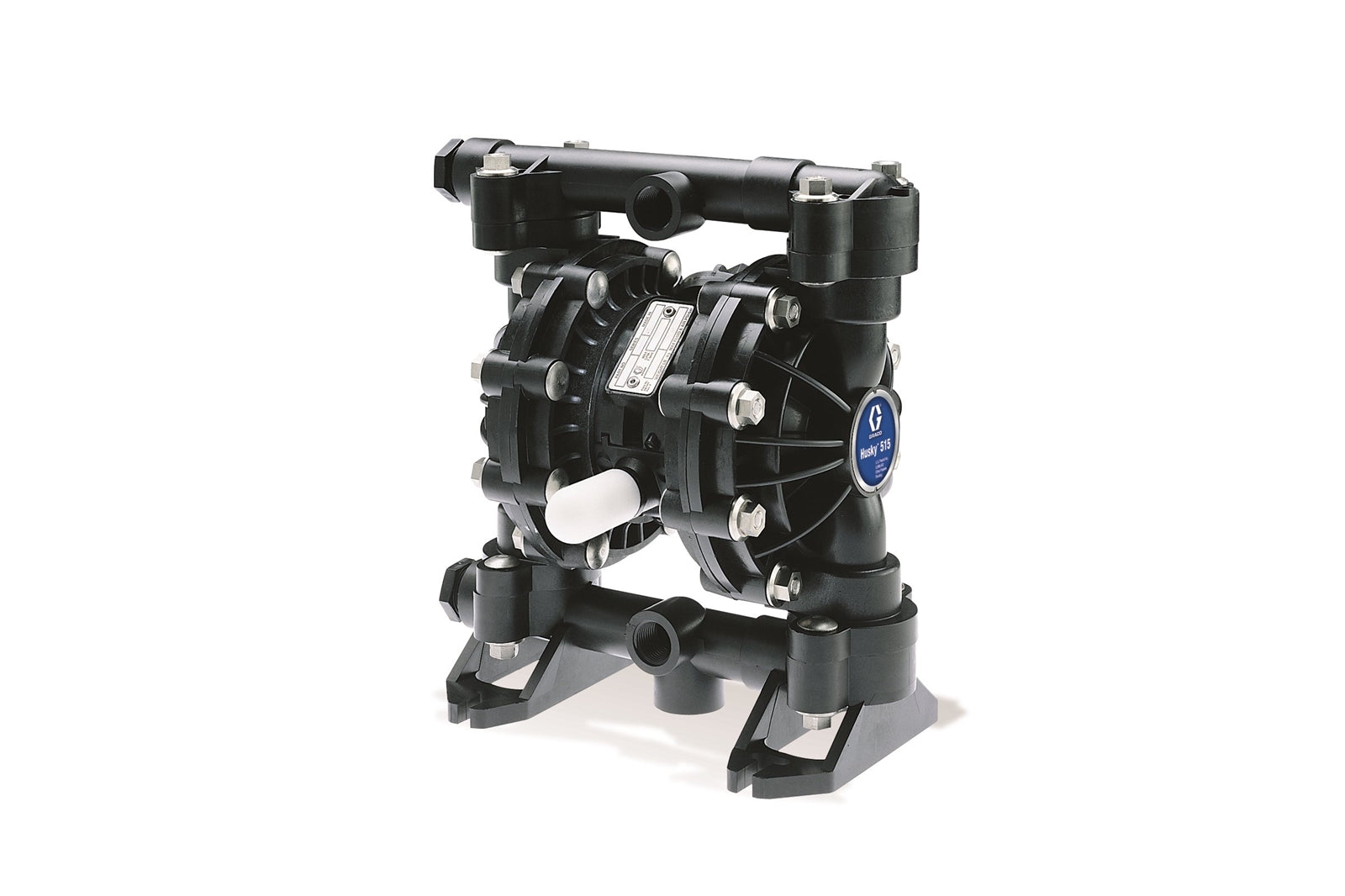

Husky 515 Diaphragm Pump

HUSKY PUMP,515AC-PP01AAC3-2ACBNBNPT

Product Specifications

UPC Product: 633955016842
Division: CED
Family Code: FAMRSP
Country of Origin: US
Unit of Measure: EA
Height: 15.6 IN | 39.624 CM
Length: 15.6 IN | 39.624 CM
Width: 8.4 IN | 21.336 CM
Volume: 1.18 FT3 | 0.033 M3
Shipping Weight: 14.9 LBS | 6.759 KG
HTS Code (US): 8413500050
HTS Code (CA): 8413500020
Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (psi): 100
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Model: Husky
Overall Height (in): 10.63
Series: 515
Maximum Fluid Pressure (MPa): 0.7
Maximum Air Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (kPa): 70
Maximum Working Pressure (bar): 7

Documents

308981.pdf Download

300570EN.pdf Download
