Gun, Spray, TEXTURE

Type: Spray Guns

SKU 235490

UPC 633955111387

Brand Graco

$1,092.00

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

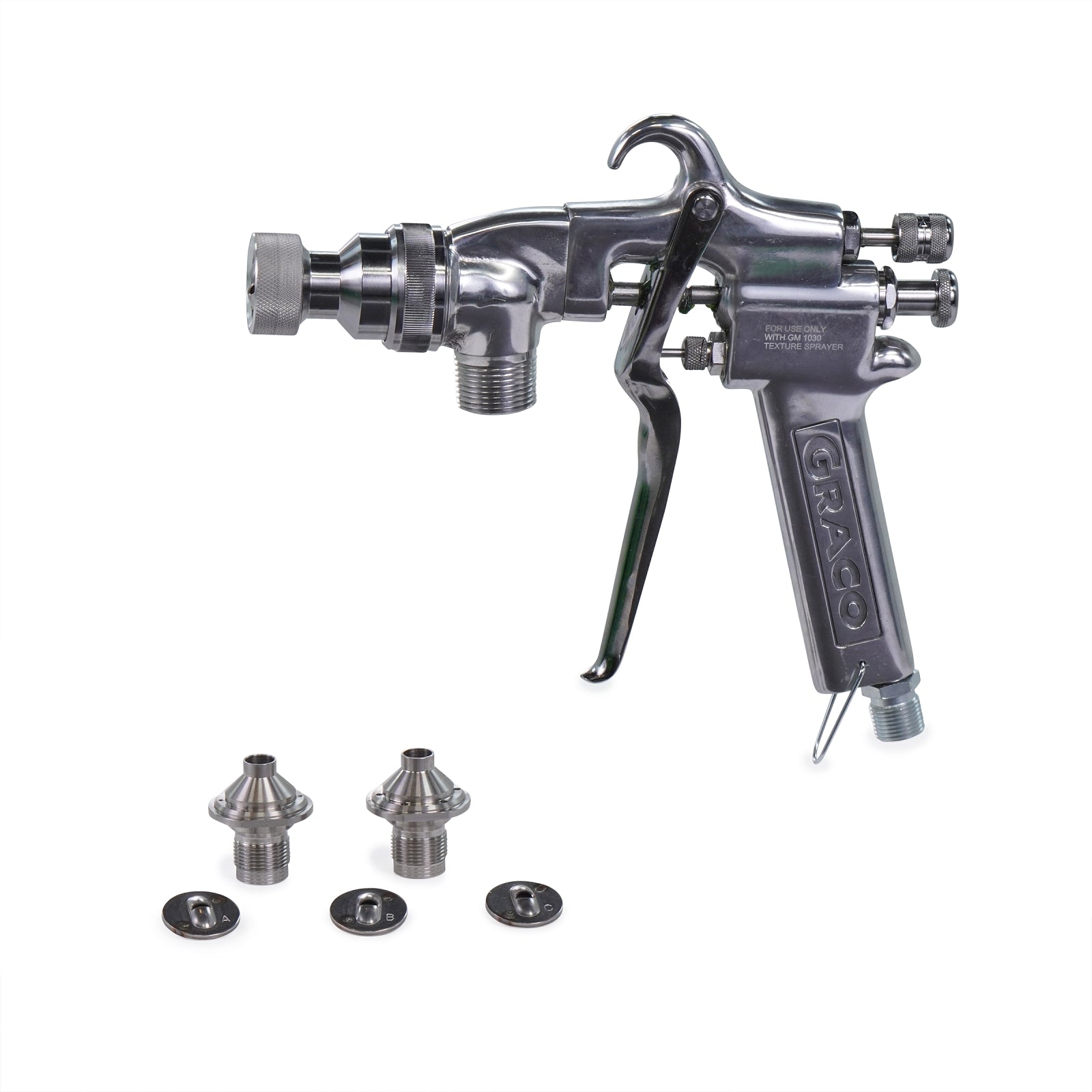

GM 1030 TexSpray Gun

GUN, SPRAY, TEXTURE

Product Specifications

UPC Product: 00633955111387
Division: CED
Family Code: MISC
Country of Origin: US
Unit of Measure: EA
Height: 3.75 IN | 9.525 CM
Length: 8.55 IN | 21.717 CM
Width: 11.4 IN | 28.956 CM
Volume: .212 FT3 | 0.006 M3
Shipping Weight: 3.06 LBS | 1.388 KG
Air Inlet Size (cm): 0.9525
Air Inlet Size (in): 3/8
Air Inlet Size (mm): 9.525
Air Inlet Thread Gender: Male
Component A Inlet Size (in): 3/4
Component A Inlet Thread Type: NPT
Component Type: Single Component
For Use With: Complete Line of Professional Texture Sprayer
Gun Weight (g): 980
Gun Weight (oz): 34
Maximum Air Pressure (bar): 9
Maximum Air Pressure (kPa): 90
Maximum Air Pressure (psi): 125
Maximum Fluid Pressure (bar): 10
Maximum Fluid Pressure (kPa): 1000
Maximum Fluid Pressure (psi): 150
Model: Graco
Overall Height (cm): 22.6
Overall Height (in): 8.9
Overall Height (mm): 226
Overall Length (cm): 23
Overall Length (in): 9
Overall Length (mm): 229
Overall Width (cm): 4.1
Overall Width (in): 1.6
Overall Width (mm): 41
Purge Method: Air
Trigger Lock: Locking
Trigger Type: Full-Hand
Sound Pressure Level (dB(A)): 96
Maximum Fluid Pressure (MPa): 1
Maximum Air Pressure (MPa): 0.9
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05

Documents

308274.pdf Download
