An industry first, the LineLazer 250DC all-in-one Stand-On Self-Propelled line striper for parking lots and roads. Riding upright is the preferred position for striping professionals - it improves visibility, reduces fatigue and increases productivity. Quickly stripe a large number of parking spots with razor sharp, long, straight lines.

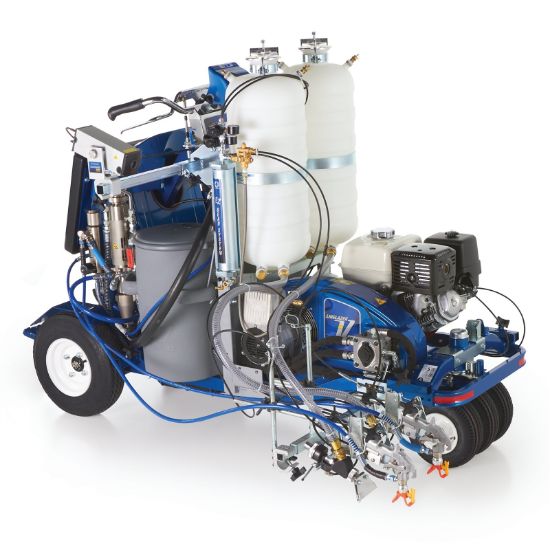

The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads. .
Endurance Chromex Pump
Precise Material Flow Consistency with a wide range of striping materials
Automatic Paint Gun System
Automatically Stripe Skip-Lines Reduce operator fatigue — push button line production Quality solenoid driven system LazerGuide 3000 Long-Line Lazer Easier, laser-straight lines Longer distance accuracy Highly-visible laser guise Faster, simple operation Remote Mount Control Striping Information At-A-Glance Simple to use and easy to see in all conditions Dual 15-Gallon Paint Hoppers Less refilling Simultaneously spray two colors and refill less often Honda® GX Engine - GX390 Reliable, Easy-to-Start Power Contractor-preferred — excellent power and proven reliability Alert shuts down engine to prevent damage if oil level drops too low Electric Start Fast starting
Common materials sprayed with this line striping machine include
common traffic paints, latex, architectural coatings, removable synthetic paints and turf paints. The Graco LineLazer 250DC features an option to mount the gun in the rear near the tire, or the standard mount next to the castor. Mounting the gun in front gives the operator improved visibility, and mounting it in the back means you get a tight striping radius. The 250DC features Graco's Auto-Layout System with new automatic gun system to mark with on-board paint rather than from aerosol cans. The stand on or flip up platform is easy to get on and off and gives the user the ability to have an improved sight line. All controls and triggers are accessible from the standing platform. The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements. Pressurized EZ Bead System Superior Bead Application Performance Ensures proper bead flow and paint penetration Dual bead tanks hold up to 120 lbs each Dual High-Efficiency Hydraulic Motors Uninterrupted Performance No-Stall design Dual
Additional Features
EasyMark Gun Adjustment System Front or Rear Gun Mount Self-Centering Front Wheel Easy Handlebar Adjustment High-Capacity Cooling System Easy Out Pump Filter Graco 25D343 LineLazer V 250DC HP Includes: 16R962 Pressurized Bead System 16U439 - Pressurized Bead Tank Kit 248157 Flex Plus Gun (2) LineLazer RAC 5 321 Spray Tip (2) LineLazer RAC 5 425 Spray Tip (2) LineLazer RAC 5 627 Spray Tip (2) 243161 RAC 5 Tip Guard (2) 245797 3/8 in x 3ft BlueMax II Airless Hose 206994 4 oz.
Throat Seal Liquid (118 mL)
