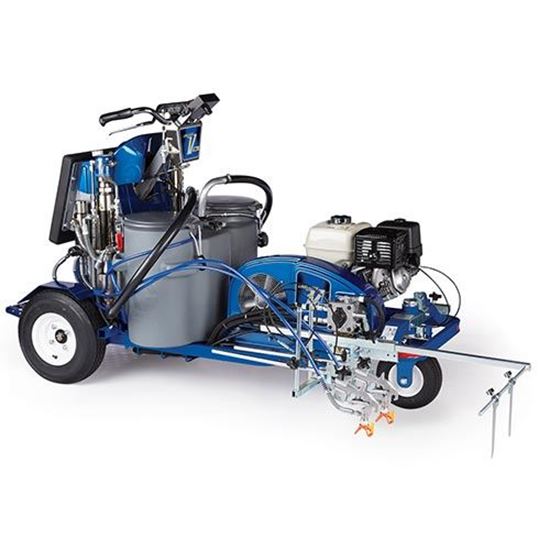

    • Graco Linelazer V 250DC HP automatic self-propelled line striper with three guns for marking lines on surfaces.

    Graco Linelazer V 250DC HP Automatic Self-propelled Line Striper 3-GUNS

    SKU 17H472
    Brand Graco
    Regular Price $36,139.00
    Shipping calculated at checkout.

    Stock adequate! Ready to ship

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • JCB
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with

    Graco 17H472 LineLazer V 250DC HP Automatic 250DC Self-Propelled Line Striper (3-Guns) Spray two colors simultaneously with Graco’s new LineLazer V 250DC. Ideally suited for airports, municipalities, DOTs or anyone who needs to spray highlight lines or other dual- color striping. The LineLazer V 250dc rewrites line-striping productivity and exibility by spraying two colors simultaneously in patterns as wide as 36 inches.

    The Linelazer 250DC is equipped with a 13 HP GX Honda Engine with electric start for ease of use. The Dual bead tanks can hold up to 240 lbs of beads (120 lbs each) Use up to six spray guns to create straighter long lines with the front or rear gun mounts. This model only comes with 3 guns.

    Endurance Chromex Pump

    Precise Material Flow Consistency with a wide range of striping materials

    Automatic Paint Gun System

    Automatically Stripe Skip-Lines Reduce operator fatigue — push button line production Quality solenoid driven system Remote Mount Control Striping Information At-A-Glance Simple to use and easy to see in all conditions Dual 15-Gallon Paint Hoppers Less refilling Simultaneously spray two colors and refill less often Honda® GX Engine with Electric Start Reliable, Easy-to-Start Power Contractor-preferred — excellent power and proven reliability Alert shuts down engine to prevent damage if oil level drops too low

    EasyMark Gun Adjustment System

    Easy Gun Adjustments Perfect gun alignment every time with easy-to-use guide mark system 2-gun capability with

    QuikSelect gun selector

    Front or Rear Mount Straighter long lines Use up to six guns

    DOES NOT include

    bead guns with pressurized bead system or bead tanks. Dual High-Efficiency Hydraulic Motors Uninterrupted Performance No-Stall design Dual

    Additional Features

    Self-Centering Front Wheel Easy Handlebar Adjustment High-Capacity Cooling System Easy Out Pump Filter Graco 17H472 LineLazer V 250DC HP Includes: 248157 Flex Plus Gun (3) LineLazer RAC 5 321 Spray Tip (3) LineLazer RAC 5 425 Spray Tip (3) LineLazer RAC 5 627 Spray Tip (3) 243161 RAC 5 Tip Guard (3) 3/8 in x 12 ft BlueMax II Airless Hose (2) 245226 3/8 in x 3 ft BlueMax II Airless Whip Hose (2) Additional Product Information Graco LineLazer Striping Brochure LineLazer V 250SPS and 250DC Parts and Instruction Manual

    Videos

    Product Specifications
    • Horse Power: 13.0, 2.5
    • Max Pressure (PSI): 3300
    • Tip Type: LineLazer
    • Max Tip Size: 0.055, 0.039 2 Gun
    • Weight: 864 lb
    Documents
    309277.pdf Download
    3A3428.pdf Download
    3A5189.pdf Download
    3A3394.pdf Download
    3A3393.pdf Download
    311254.pdf Download
    344385EN.pdf Download
