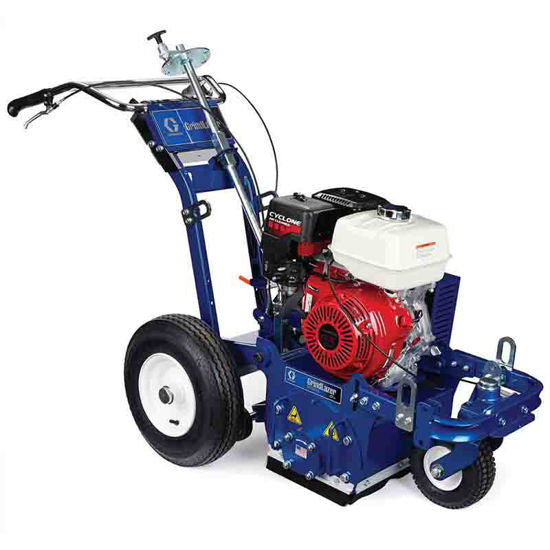

Graco 25M993 GrindLazer HP DC1013 G Gas Powered Scarifier Line Striping Remover The GrindLazer HP DC1013 G is part of Graco's High Production Series - the contractor choice for all-around scarifying jobs, including parking lot lines, intersection markings, construction zones and sidewalk smoothing. The optional LineDriver System delivers unmatched productivity to get more work done without the fatigue from walking.
This uses a cutter drum that has a maximum width of 10" and has a cut rate of 800sq ft an hour. The DC1013 G is powered with a 13hp Honda ProStart engine. The EasyGlide Wheel Mount System makes it as easy to use as a LineLazer, and its rugged, innovative design means you can count on it to perform for a lifetime of use.
Note: 25M993
DialDown Depth Control System Easy Cutter Depth Control Easy to “dial down” for precise cutting depth control with multiple positions InstaCut Technology Ultimate Removal or Inlay Flexibility Only unit to offer “hands-on” engagement of the cutting deck system for up or down position Allows deck to “float” when on uneven surfaces No-tool system Vibration Reduction Technology All-Day Comfort Up to 4x less vibration than the competition Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue Comfort-grip handlebars for precise steering Durable 13 HP Honda Power With Cyclone Filter Contractor-Preferred Power Cyclone filter protects the engine from harmful airborne dust Extreme-Duty ProStart System Safer Operation Easy cutter start/stop with centrifugal Easy cold weather starting Provides longer belt life and eliminates broken recoils TriBelt Drive System Maximum Road Handling 3-cog belt design optimizes power transfer and eliminates costly downtime Fat Track Front Swivel Wheel Fast, Easy Turning Proven front caster wheel system makes turning fast and easy Maneuver curves better No need to “muscle it” while moving EasyGlide Wheel Mount System Safer, Easier To Maneuver Front-mounted caster along with dual rear pneumatic air-filled tires Pneumatic air-filled tires help eliminate vibration Dust Removal Vacuum port for optional LazerVac vacuum system LineDriver Compatible Double Your Productivity More info on the types of Graco GrindLazer cutters available here.
Available Cutters: (25M993 does not include cutters. These are the available ones for this machine. Contact us for pricing) Wire Brush - Wire brushes are ideal for removing curing compounds and cleaning surfaces without damaging the substrate.
Graco offers wire brushes for both drum and rotary equipment. Steel Star - Ideal for gentle removal, provides deeper penetration of substrate Steel Beam - Ideal for gentle removal Carbide Flail - Ideal for removing paint and epoxy markings, surface leveling, and removing trip hazards Carbide Flat - These versatile cutters use a flat carbide pin to strip, mill, and clean concrete and asphalt surfaces Carbide Tipped Miller - Millers scrape the surface to remove markings, making them a suitable choice for removing paint, epoxy, tape, and thermoplastic Full Carbide Miller - Similar to carbide-tipped millers, but cast entirely from carbide for a longer service life Carbide Pick - Available for drum and rotary scarifiers, carbide picks are ideal for applications requiring aggressive removal of thick coatings or material Air Filter Type Cyclone Cut Direction Forward Cutter Drum Diameter (in) 5 Cutter Type Drum Depth Adjustment Manual Engine Brand Honda Engine Model GX390 Engine Size (HP) 13 Engine Start Type ProStart LineDriver Required Optional Maximum Cut Rate (ft2/hr) 800 Maximum Cut Rate w/ LineDriver (ft2/hr) 1700 Maximum Cut Width (in) 10 Model GrindLazer Product Series High Production Type Concrete Scarifier Vacuum Port Yes Water Connection Optional
