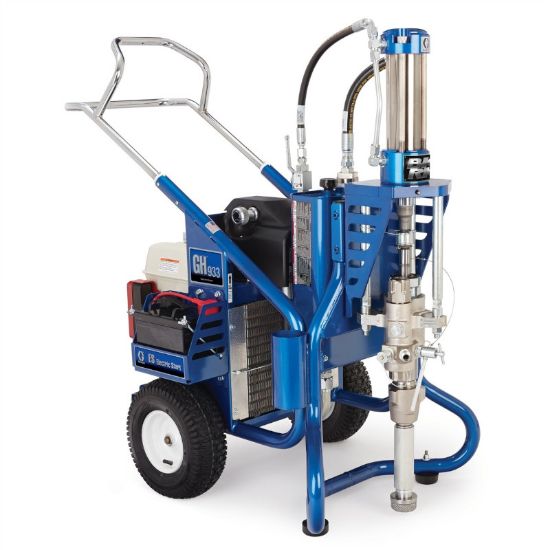

    • Graco GH 933ES Hi Flo Big Rig Gas Hydraulic Sprayer for airless painting, with large capacity and hydraulic pump system.

    Graco GH 933ES Hi Flo Big Rig Gas Hydraulic Sprayer, Big 250 - 17B488

    SKU 17B488
    Brand Graco
    Regular Price $27,767.00
    Shipping calculated at checkout.

    Stock adequate! Ready to ship

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • JCB
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with

    Graco GH 933ES 17B488 Hi Flo Big Rig Gas Hydraulic Sprayer, Big 250 The Graco GH 933ES is equipped with Graco’s proven Xtreme pump lower with durable Tuff-Stack packings, the GH 933ES Hi Flo Big Rig Big 250 sprayer features oversized outlets and a filter-less design for maximum flow and performance while providing 250 ft of pressure-rated hose and everything you need to start spraying.

    Optmized for Silicon and other Heavy Bonded materials. The most Powerful hydraulic sprayer in the industry. Equipped with a 13 hp Honda engine to deliver maximum performance.

    This Big-Rig delivers 2.5 GPM with a whopping maximum pressure of 7250 PSI! This sprayer will atomize the hard to spray products. Honda® GX390 Engine with Electric Start 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance Contractor preferred engine with Oil Alert Back-up Pull Start High-capacity, 12 Volt 18 Amp Charging System XHF Gun Designed specifically for spraying viscous materials at high flow rates Ready-To-Spray Big 250 System Configured with 250 feet of pressure-rated hose, gun, tip extensions, and all the fittings you will need Heavy-Duty Cooling System Large 4 gallon hydraulic reservoir Return line hydraulic filter extends life No special hydraulic fluid needed Proven cooler and blower system Easy to use drain plug Rugged, Heavy-Duty

    Steel Frame

    Easy-roll tubed pneumatic tires Enamel painted steel tubing – corrosion protection Multi-function design converts to skid mount in seconds Heavy-Duty Graco Hydraulic System Faster, more responsive changeover O-ring sealed to eliminate leaks High-precision pressure control No hydraulic reset button needed Durable hydraulic lines for long life

    Additional Features

    Lockable pressure control knob Grounding wire for safety with solvent materials Large diameter siphon hose Graco GH933ES Big Rig 17B488 Includes: 262854 XHF Airless Spray Gun XHD RAC 429 Spray Tip XHD RAC 531 Spray Tip XHD RAC Guard 18in Tip Extension 180° Tip Swivel 3/4 in x 200 ft Xtreme-Duty Airless Hose 1/2 in x 50 ft Xtreme-Duty Airless Hose Hose 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose

    Product Specifications
    • Gallons per Minute: 2.5
    • Max Tip Size: 0.053
    • Tip Type: RAC XHD
    • Max Pressure (PSI): 7250
    • Configuration: Roof-Rig
    • Material Sprayed: Water, Oil, Solvent-based (flammable)
    • Horse Power: 13
    • Weight: 476 lb
    • Shipping Weight: 512 lb
    Documents
    311762.pdf Download
    3A2799.pdf Download
    332157.pdf Download
    3A5269.pdf Download
    332156.pdf Download
    307005.pdf Download
    332158.pdf Download
