GH 230 Sprayer,std
SKU
24W929
UPC 633955699816
Brand
Graco
Regular Price
$7,586.00
Shipping calculated at checkout.
Stock adequate! Ready to ship
Payment & Security
Your payment is secure. We don’t store or see your card details.
1 / 1
Press & drag to view

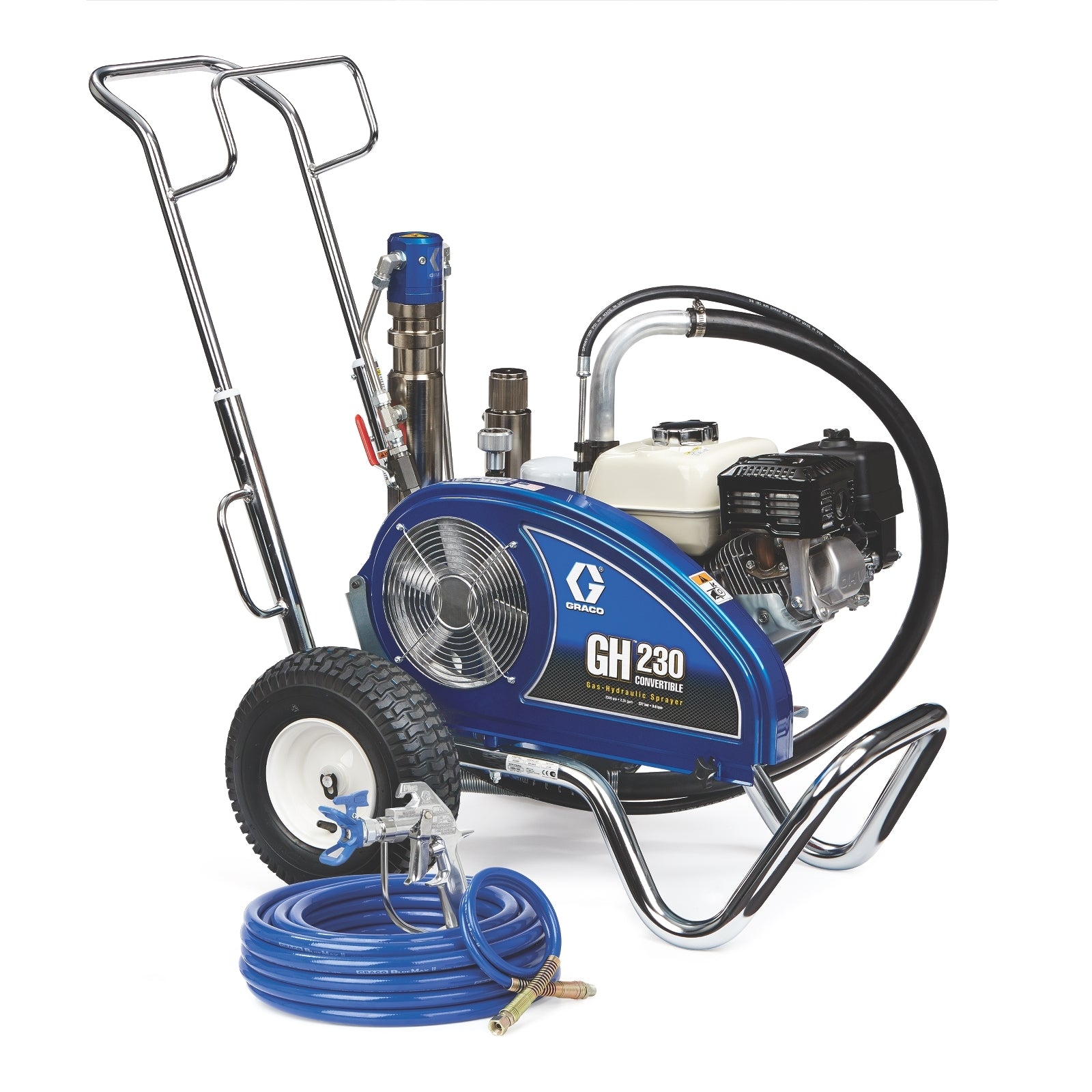

GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer
GH 230 SPRAYER,STD
Product Specifications
- UPC Product: 633955699816
- Division: CED
- Family Code: FAMGHS
- Country of Origin: US
- Unit of Measure: EA
- Height: 45 IN | 114.300 CM
- Length: 55 IN | 139.700 CM
- Width: 29 IN | 73.660 CM
- Volume: 41.537 FT3 | 1.176 M3
- Shipping Weight: 234 LBS | 106.141 KG
- Compatible Replacement Pump: 24W997
- Convertible: Yes
- Engine Brand: Honda
- Engine Size (HP): 6.5
- Fluid Inlet Size (in): 1-5/16
- Fluid Inlet Size (mm): 33.34
- Fluid Outlet Size (mm): 3.75
- Frame Configuration: Cart
- Includes: Silver Plus Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
- Maximum Flow Rate (L/min): 8.9
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 92
- Maximum Sound Pressure Level (dB(A)): 96
- Maximum Tip Size (in): 0.053
- Maximum Tip Size Gun 1 (in): 0.053
- Maximum Working Pressure (psi): 3300
- Maximum Working Pressure (kPa): 22800
- Power Rating (HP): 6.5
- Power Rating (kW): 4.85
- Power Rating (W): 4847
- Maximum Working Pressure (MPa): 22.8
- Overall Width (mm): 610
- Model: GH
- Maximum Working Pressure (bar): 228
- Overall Height (cm): 104.1
- Overall Height (in): 41
- Weight (kg): 76
- Overall Height (mm): 1041
- Overall Length (cm): 121.92
- Overall Width (in): 24
- Overall Length (in): 48
- Series: 230
- Overall Length (mm): 1219.2
- Overall Width (cm): 61
- Outlet Paint Filter: Easy Out
- Pump Mount Type: QuikChange
- Pump Rod Type: Chromex
- Number of Guns: 5
- Maximum Tip Size Gun 2 (in): 0.038
- Recommended Annual Usage: Up to 1,000 gallons per week
- Maximum Tip Size Gun 3 (in): 0.032
- Maximum Tip Size Gun 4 (in): 0.028
- Power Rating (cc): 200
- Compatible Electric Motor Kits: 248949, 248950 (CSA)
- Maximum Tip Size Gun 5 (in): 0.024
- Maximum Tip Size 2 Guns - Electric Motor (in): 0.017
- Maximum Tip Size 1 Gun - Electric Motor (in): 0.031
- Product Series: Standard
