• GH 200 Sprayer,w/non-csa,std

    GH 200 Sprayer,w/non-csa,std

    Type: Airless Sprayers
    SKU 24W926
    UPC 633955699779
    Brand Graco
    $8,693.00
    Shipping calculated at checkout.

    Stock adequate! Ready to ship

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • JCB
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with
    Share to:
    View Full Details
    1 / 1
    Press & drag to view
    Product DetailsRelated ProductsRecently Viewed

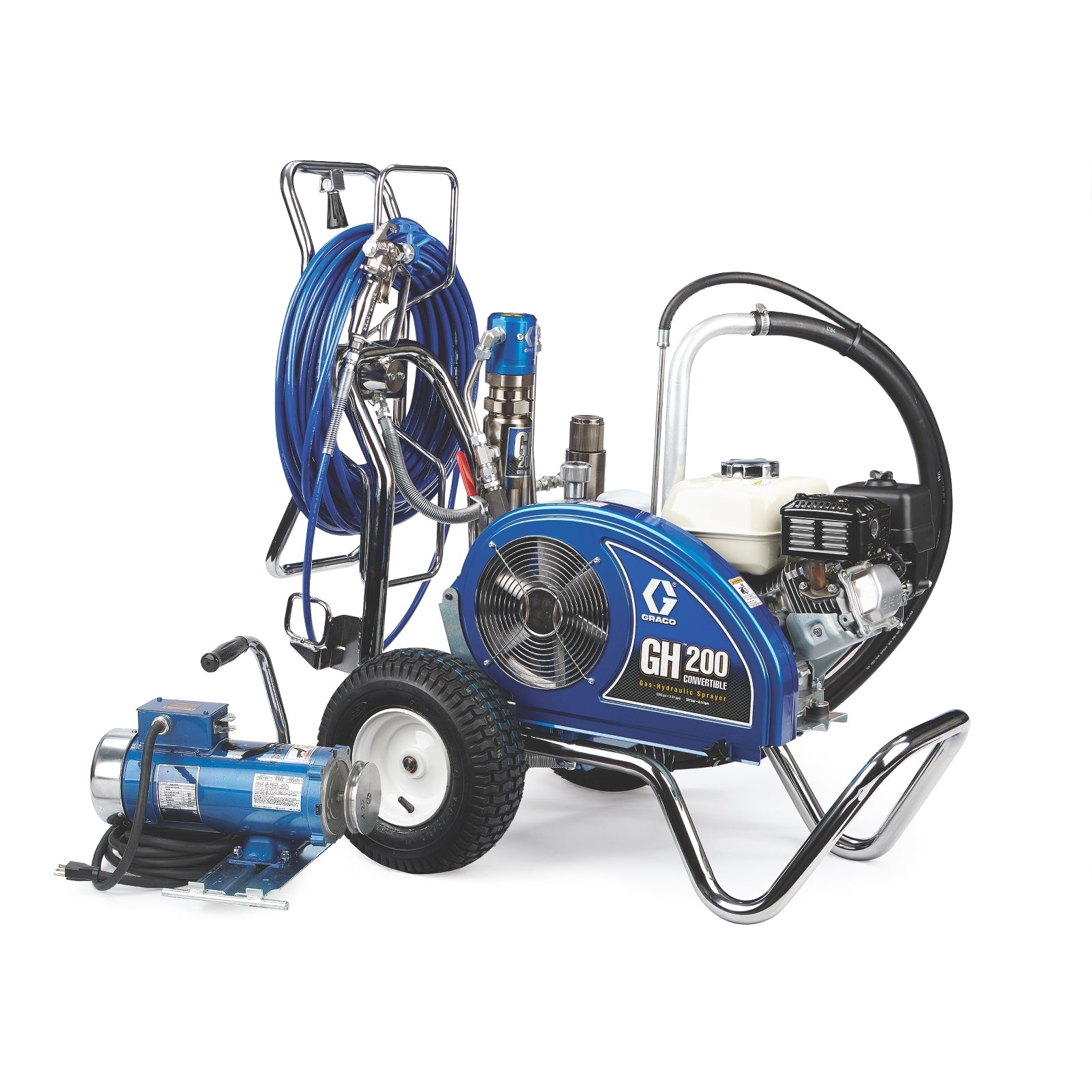

    GH 200 Convertible Standard Series Gas Hydraulic Airless Sprayer with Electric Motor Kit

    GH 200 SPRAYER,W/NON-CSA,STD

    Product Specifications
    • UPC Product: 633955699779
    • Division: CED
    • Family Code: FAMGHS
    • Country of Origin: US
    • Unit of Measure: EA
    • Compatible Replacement Pump: 24W995
    • Convertible: Yes
    • Engine Brand: Honda
    • Engine Size (HP): 5.5
    • Fluid Inlet Size (in): 1-5/16
    • Fluid Inlet Size (mm): 33.34
    • Fluid Outlet Size (mm): 3.75
    • Frame Configuration: Cart
    • Includes: Contractor Gun, RAC X LP 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz, Electric Motor Kit
    • Maximum Flow Rate (L/min): 8.1
    • Maximum Hose Length (ft): 300
    • Maximum Hose Length (m): 92
    • Maximum Sound Pressure Level (dB(A)): 96
    • Maximum Tip Size (in): 0.047
    • Maximum Tip Size Gun 1 (in): 0.047
    • Maximum Working Pressure (psi): 3300
    • Maximum Working Pressure (kPa): 22800
    • Power Rating (HP): 5.5
    • Power Rating (kW): 4.10
    • Power Rating (W): 4101
    • Maximum Working Pressure (MPa): 22.8
    • Overall Width (mm): 610
    • Model: GH
    • Maximum Working Pressure (bar): 228
    • Overall Height (cm): 100.3
    • Overall Height (in): 39.5
    • Weight (kg): 73
    • Overall Height (mm): 1003
    • Overall Length (cm): 104.1
    • Overall Width (in): 24
    • Overall Length (in): 41
    • Series: 200
    • Overall Length (mm): 1041
    • Overall Width (cm): 61
    • Outlet Paint Filter: Easy Out
    • Pump Mount Type: QuikChange
    • Pump Rod Type: Chromex
    • Number of Guns: 4
    • Maximum Tip Size Gun 2 (in): 0.034
    • Recommended Annual Usage: Up to 1,000 gallons per week
    • Maximum Tip Size Gun 3 (in): 0.027
    • Maximum Tip Size Gun 4 (in): 0.023
    • Power Rating (cc): 160
    • Compatible Electric Motor Kits: 248949, 248950 (CSA)
    • Maximum Tip Size 2 Guns - Electric Motor (in): 0.017
    • Maximum Tip Size 1 Gun - Electric Motor (in): 0.031
    • Product Series: Standard
    Documents
    310812.pdf Download
    334558.pdf Download
    311254.pdf Download
    334654.pdf Download
